Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API, ISO, QHSE
Model Number: Sucker rod pump
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable

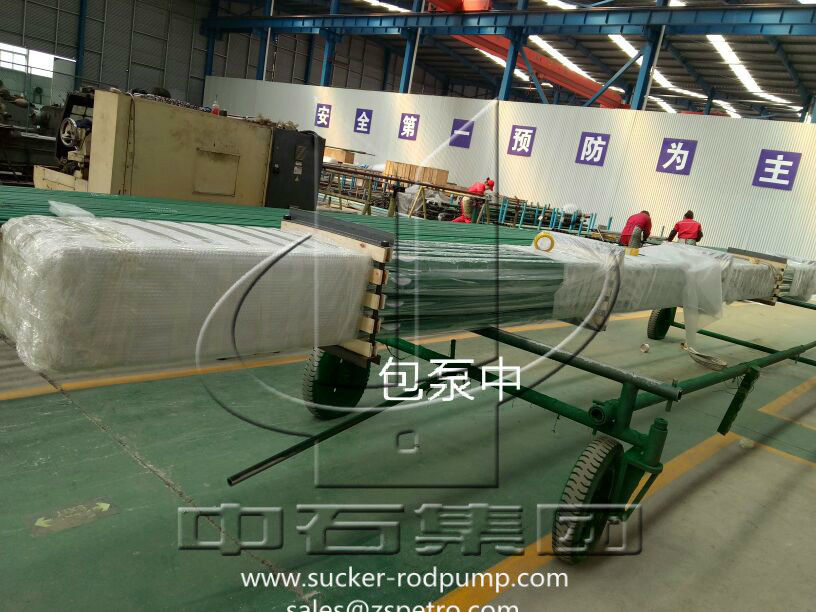

Packaging Details: Standard exported packing
Delivery Time: 10~15 workdays
Payment Terms: L/C, D/P, T/T, Western Union, D/A
Supply Ability: 1000 SETS/MONTH
Standard: |
NACE |
Seating Assembly: |
Mechanical Seating |
Seating Loacation: |
Top Or Bottom |
Barrel: |
45# Steel, Chrome Plated |
Barrel Type: |
Thin Wall Or Heavy Wall |
API Certificate: |
API 11AX-0061 |
Standard: |
NACE |
Seating Assembly: |
Mechanical Seating |
Seating Loacation: |
Top Or Bottom |
Barrel: |
45# Steel, Chrome Plated |
Barrel Type: |
Thin Wall Or Heavy Wall |
API Certificate: |
API 11AX-0061 |
NACE Standard Extreme Abrasion Sucker Rod Pump
NACE Standard Abrasion Resistant Sucker Rod Pump Description
Puyang Zhongshi Group developed the NACE standard rod pump in recent two years, which suitable for the corrosion oil well for salt water, H2S and CO2. Pump parts material is corrosion resisitant and abrasion resistant. Sucker rod pump is equipped with a seating nipple(there are two seating nipples in API-RHBM-AC) , seating nipple is connected on the tubing string, down to the bottom of the well with the tubing string. Plunger assembly is connected on the rod string and together with the whole pump down to support joint position, pump is fixed within the support joint by external force, plunger assembly is together with the sucker rod string up and down reciprocating movement to achieve pumping work. Don't need to put out of the tubing string when the sucker rod pump is mantained, only through rod string together put out of the whole pump, operation is simple.
Technical parameter list:
| Specification | Pump diameter | Barrel length (ft) | Plunger length (ft) | Stroke length (ft) | Extension length (ft) | Tubing size EUE/NUE | Sucker rod size |
| 15-106RHBM | Ø26.99 |
2.1-10 |
0.3-8 |
1.2-9 |
0.3-2.4 | 1.9” |
5/8” 3/4” |
| 15-106RHBC | |||||||
| 20-125RHAM | Ø31.75 | 2-3/8” | |||||
| 20-125RHAC | |||||||
| 20-125RHBM | |||||||
| 20-125RHBC | |||||||
| 20-125RHBM/AC | |||||||
| 25-150RHAM | Ø38.10 | 2-7/8” | |||||
| 25-150RHAC | |||||||
| 25-150RHBM | |||||||
| 25-150RHBC | |||||||
| 25-150RHBM/AC | |||||||
| 25-175RHAM | Ø44.45 | ||||||
| 25-175RHAC | |||||||
| 25-175RHBM | |||||||
| 25-175RHBC | |||||||
| 25-175RHBM/AC | |||||||
| 30-225RHAM | Ø57.15 | 3-1/2” | |||||
| 30-225RHAC | |||||||
| 30-225RHBM | |||||||
| 30-225RHBC | |||||||
| 30-225RHBM/AC |
Features
1. API 11AX oil pump with NACE standard.
2. Tungsten carbide valve balls & seats
3. Chrome plated AISI1045 steel barrel.
