| Barrel Type: | Thin Wall | Location Of Seating: | Top |
|---|---|---|---|
| Barrel Coating: | Chrome Plated | Seating Type: | Mechanical |
| API No.: | 11AX-0061 | Model: | From 20-125 To 30-250 |
| High Light: | 2 3/8x1 1/4 Oil Well Pump Thin,RWAM Oil Well Pump Thin,2 3/8x1 1/4 suker rod pump |
||

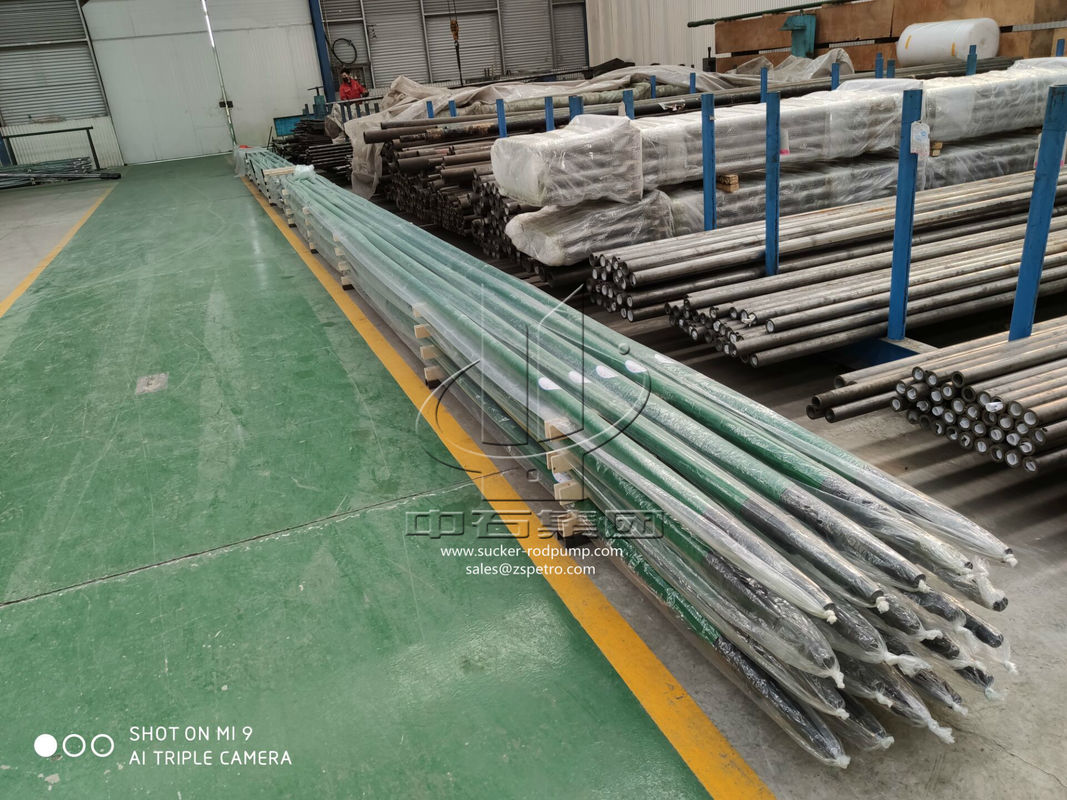

RWAM Thin Wall Barrel Series Sucker Rod Pump
RWAM Thin Wall Barrel Series Sucker Rod Pump Description
The Rod Pump, Stationary Thin Wall Barrel is generally suitable for shallow well. Due to the small OD of the barrel, a larger-sized rod pump can be run in an oil well with a small-sized tubing to increase production. In addition, through the selection of fitting materials, various heat treatment processes and surface treatment processes, the requirements of well conditions for product strength, corrosion resistance and wear resistance can be met.
Technical parameter list:
| Symbol | Description | Tubing Size & Pump Size | |||
| 2 3/8x1 1/4 | 2 3/8x1 1/2 | 2 7/8x2 | 3 1/2x2 1/2 | ||
| Complete Pump Designation | |||||
| 20-125 | 20-150 | 25-200 | 30-250 | ||
| B21 | Bushing, Valve Rod | B21-20 | B21-20 | B21-25 | B21-30 |
| R11 | Rod, Valve | R11-20 | R11-20 | R11-25 | R11-30 |
| C12 | Cage, Top Plunger | C12-125 | C12-150-20 | C12-200 | C12-250 |
| P21 | Plunger, One Piece | P21-125 | P21-150 | P21-200 | P21-250 |
| C13 | Cage, Closed, Pin Plunger | C13-125 | C13-150 | C13-200 | C13-250 |
| V11 | Traveling Valve | V11-125 | V11-150 | V11-200 | V11-250 |
| P12 | Plug Seat | P12-125 | P12-150 | P12-200 | P12-250 |
| G11 | Guide, Valve Rod | G11-20 | G11-20 | G11-25 | G11-30 |
| S21 | Seating Assembly, Mechanical Top Lock | S21-20 | S21-25 | S21-25 | S21-30 |
| B11 | Barrel, Thin Wall | B11-125 | B11-150 | B11-200 | B11-250 |
| C14 | Cage, Closed Barrel |
C14-20- 125 |
C14-20 | C14-25 | C14-30 |
| V11 | Standing Valve | V11-175 | V11-175 | V11-225 | V11-250 |
| B22 | Bushing, Seat, Barrel Cage | B22-20 | B22-20 | B22-25 | B22-30 |
| N14 | Nipple, Seating, Mechanical Top Lock | N14-20 | N14-25 | N14-25 | N14-30 |
.
1. Top mechanical seating sucker rod pump
2. Stationary thin wall barrel
3. High temperature resistance
