Product Details:
Payment & Shipping Terms:
|
Product Name: | Pump Plunger | Surface Coating: | Spray Metal, Chrome Plated |
---|---|---|---|
Standard: | API 11AX | Application: | Sucker Rod Pump Parts |
Material Of Two Ends: | As Requirements | Material: | 45# Steel |
Length: | Standard Or As Requirements | Parts Code: | P |
High Light: | API 11AX Oilfield Pump Parts,API 11AX Spray Metal Plungers,45 Steel Spray Metal Plungers |
Grooved Spray Metal Plungers Oilfield Pump Parts
Grooved Plungers in Rod Pump Description
The Spray Metal Plunger is a key part of sucker rod pump. It moves up and down to extract oil from the oilwell.
1045 steel spraying (B1), 1045 steel spraying (B2), 1045 steel chrome plating (A1), 1045 steel double chrome plating (A2).
Technical Specifications
Model | Part No. | API No. | Mark |
P21A | P21A-106(XX)-L | P21-106 | Plunger, Pin End, One Piece |
P21A-125(XX)-L | P21-125 | ||
P21A-150(XX)-L | P21-150 | ||
P21A-175(XX)-L | P21-175 | ||
P21A-200(XX)-L | P21-200 | ||
P21A-225(XX)-L | P21-225 | ||
P21A-250(XX)-L | P21-250 | ||
P21I | P21I-106(XX)-L | P21-106 | Plunger, Pin End, One Piece, inclined plane |
P21I-125(XX)-L | P21-125 | ||
P21I-150(XX)-L | P21-150 | ||
P21I-175(XX)-L | P21-175 | ||
P21I-200(XX)-L | P21-200 | ||
P21I-225(XX)-L | P21-225 | ||
P21I-250(XX)-L | P21-250 | ||
P21I-275(XX)-L | P21-275 | ||
P21I-325(XX)-L | — | ||
P21I-375(XX)-L | P21-375 | ||
P22 | P22-125(XX)-L | P22-125 | Plunger, Assembled |
P22-150(XX)-L | P22-150 | ||
P22-175(XX)-L | P22-175 | ||
P22-200(XX)-L | P22-200 | ||
P22-225(XX)-L | P22-225 | ||
P22-250(XX)-L | P22-250 | ||
P22-275(XX)-L | P22-275 | ||
P23 | P23-175(XX)-L | P23-175 | Plunger, Box End |
P23-225(XX)-L | P23-225 | ||
P23-275(XX)-L | P23-275 | ||
P23-375(XX)-L | P23-375 |
Note:
1)“XX” is Material identification symbol;
2)L is standard strength for plunger;
3)Two ends are monel connector;
4)The outer surface of the plunger can be processed with annular grooves according to user needs.

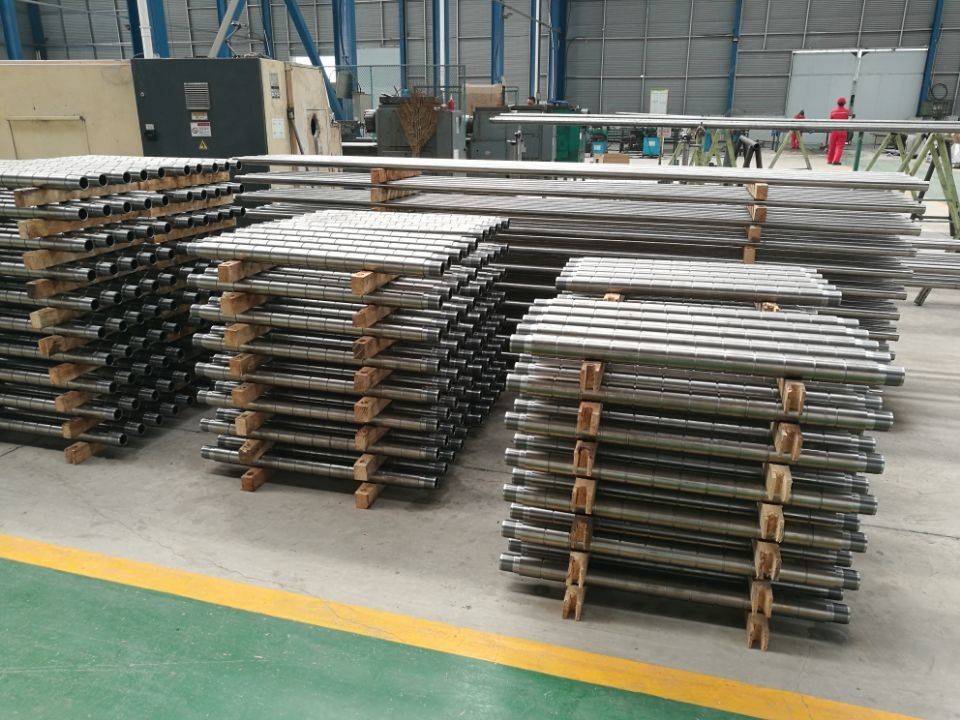

Photo:
