Product Details:
Payment & Shipping Terms:
|
Coating Type: | Chrome Plated | Application: | Pump Parts |
---|---|---|---|
Standard Or Not: | Yes | Material: | AISI 1045 Steel |
Parts Code: | P | Standard: | API 11AX |
High Light: | API 11AX High Pressure Pump Plunger,AISI 1045 High Pressure Pump Plunger,API 11AX plunger pump parts |

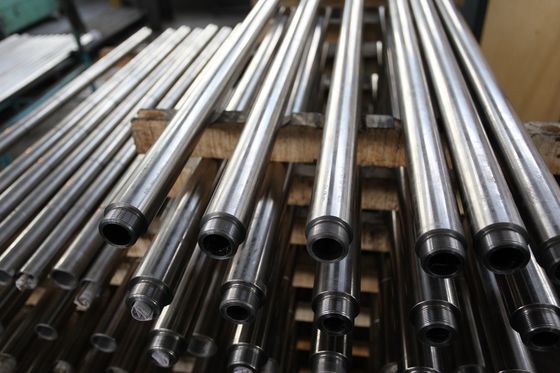

Chrome Plated Pump Plungers Oilfield Pump Parts
Chrome Plated Plungers Description
Pump plunger is a key part of the API sucker rod pump. It moves up and down in the pump to extract oil from the oilwell.
There are spray metal plunger and the chrome plated plunger
Technical Specifications
Model | Part No. | API code. | Describe |
P21A | P21A-106(XX)-L | P21-106 | Plunger, Pin End, One Piece |
P21A-125(XX)-L | P21-125 | ||
P21A-150(XX)-L | P21-150 | ||
P21A-175(XX)-L | P21-175 | ||
P21A-200(XX)-L | P21-200 | ||
P21A-225(XX)-L | P21-225 | ||
P21A-250(XX)-L | P21-250 | ||
P21I | P21I-106(XX)-L | P21-106 | Plunger, Pin End, One Piece, inclined plane |
P21I-125(XX)-L | P21-125 | ||
P21I-150(XX)-L | P21-150 | ||
P21I-175(XX)-L | P21-175 | ||
P21I-200(XX)-L | P21-200 | ||
P21I-225(XX)-L | P21-225 | ||
P21I-250(XX)-L | P21-250 | ||
P21I-275(XX)-L | P21-275 | ||
P21I-325(XX)-L | — | ||
P21I-375(XX)-L | P21-375 | ||
P22 | P22-125(XX)-L | P22-125 | Plunger, Assembled |
P22-150(XX)-L | P22-150 | ||
P22-175(XX)-L | P22-175 | ||
P22-200(XX)-L | P22-200 | ||
P22-225(XX)-L | P22-225 | ||
P22-250(XX)-L | P22-250 | ||
P22-275(XX)-L | P22-275 | ||
P23 | P23-175(XX)-L | P23-175 | Plunger, Box End |
P23-225(XX)-L | P23-225 | ||
P23-275(XX)-L | P23-275 | ||
P23-375(XX)-L | P23-375 |
Code explaination to the above:
1)“XX” represent Material identification symbol;
2)L represent standard strength for plunger;
3)The outer surface of the plunger can be processed with annular grooves based on the well conditions.
Photo:
