Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API, ISO, QHSE
Model Number: ZS
Payment & Shipping Terms
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Standard exported packing
Delivery Time: 10~15 workdays
Payment Terms: L/C, D/P, T/T, Western Union, D/A
Supply Ability: 10000pcs/month
Material: |
45# Steel |
Surface Coating: |
Spray Metal |
API Certificate No.: |
11AX-0061 |
Parts Code: |
P |
Type: |
Grooved Or Not |
Thread Type: |
Pin Threads |
Material: |
45# Steel |
Surface Coating: |
Spray Metal |
API Certificate No.: |
11AX-0061 |
Parts Code: |
P |
Type: |
Grooved Or Not |
Thread Type: |
Pin Threads |
Pin Ends Spray Metal Coating Plungers Oilfield Pump Parts
Pin Ends Pump Plungers Description
Pump plunger moves up and down in the rod pump to extract oil from the oilwell, which is a key part.
Coating type for plunger: spray metal and chrome plated. Spray metal is more popular.
Threads are usual outer threads, that is pin end.
Technical Specifications
| Part code | Specification | API code. | description |
| P21A | P21A-106(XX)-L | P21-106 | Plunger, Pin End, One Piece |
| P21A-125(XX)-L | P21-125 | ||
| P21A-150(XX)-L | P21-150 | ||
| P21A-175(XX)-L | P21-175 | ||
| P21A-200(XX)-L | P21-200 | ||
| P21A-225(XX)-L | P21-225 | ||
| P21A-250(XX)-L | P21-250 | ||
| P21I | P21I-106(XX)-L | P21-106 | Plunger, Pin End, One Piece, inclined plane |
| P21I-125(XX)-L | P21-125 | ||
| P21I-150(XX)-L | P21-150 | ||
| P21I-175(XX)-L | P21-175 | ||
| P21I-200(XX)-L | P21-200 | ||
| P21I-225(XX)-L | P21-225 | ||
| P21I-250(XX)-L | P21-250 | ||
| P21I-275(XX)-L | P21-275 | ||
| P21I-325(XX)-L | — | ||
| P21I-375(XX)-L | P21-375 | ||
| P22 | P22-125(XX)-L | P22-125 | Plunger, Assembled |
| P22-150(XX)-L | P22-150 | ||
| P22-175(XX)-L | P22-175 | ||
| P22-200(XX)-L | P22-200 | ||
| P22-225(XX)-L | P22-225 | ||
| P22-250(XX)-L | P22-250 | ||
| P22-275(XX)-L | P22-275 | ||
| P23 | P23-175(XX)-L | P23-175 | Plunger, Box End |
| P23-225(XX)-L | P23-225 | ||
| P23-275(XX)-L | P23-275 | ||
| P23-375(XX)-L | P23-375 |
Note:
1)“XX” is Material identification symbol;
2)L is standard strength for plunger; or can be as requirements
3)Two ends are monel connector or other alloy steel;
4) Annular grooves on the surface is according to user needs.

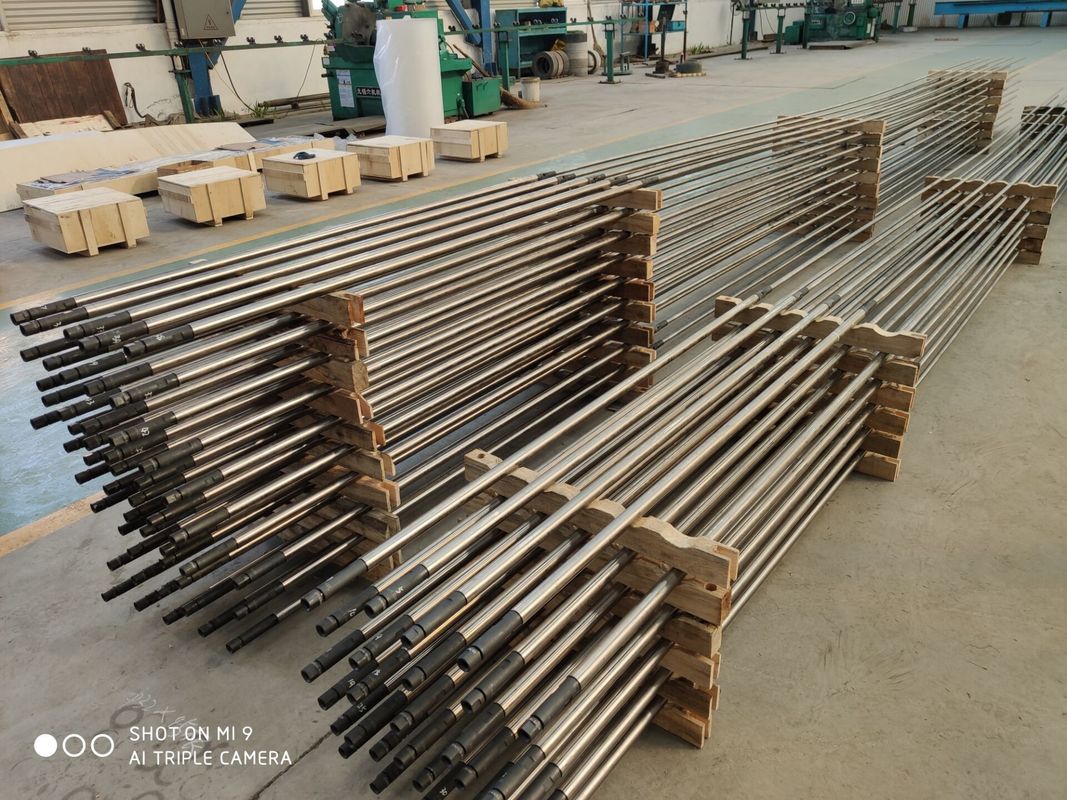

Photo:
