5" 35Mpa Casing Float Collar And Float Shoe API Oiflfield

Name: 5" 35Mpa Casing Float Collar And Float Shoe API Oiflfield
Brand: Puyang Zhongshi Group Co., Ltd.
SKU: 4 1/2"~36"
Price: 275.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Puyang Zhongshi Group

Certification: API,ISO,QHSE

Model Number: 4 1/2"~36"

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Wooden Box

Delivery Time: depends on quantity

Payment Terms: T/T, MoneyGram

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                35Mpa Casing Float Collar And Float Shoe, 5" Casing Float Collar And Float Shoe, 5" casing shoe and float collar


Product:	API Oiflfield Casing Float Collar And Float Shoe	Fill-in:	Cement Or Alumium
Usage:	Drilling Equipment	Material:	P-110, K55, J55, N80,L80 Or As Required
Thread:	STC/BTC/LTC Or As Required	Reverse Pressure:	35 Mpa

Product:	API Oiflfield Casing Float Collar And Float Shoe
Fill-in:	Cement Or Alumium
Usage:	Drilling Equipment
Material:	P-110, K55, J55, N80,L80 Or As Required
Thread:	STC/BTC/LTC Or As Required
Reverse Pressure:	35 Mpa

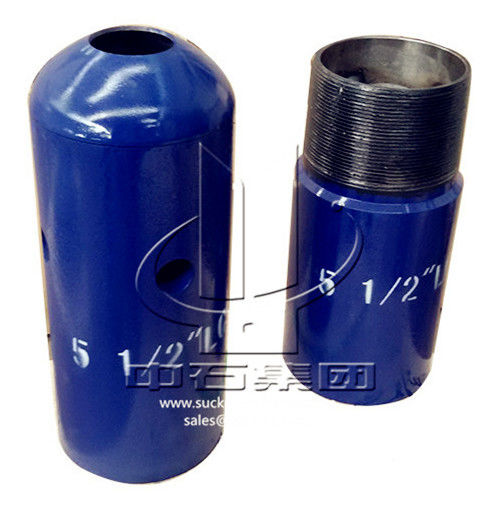

5" 35Mpa Casing Float Collar And Float Shoe API Oiflfield

API Oiflfield casing float collar and float shoe Description

A rounded profile float shoe with an integral check valve attached to the bottom of a casing string prevents reverse flow, or U-tubing, of cement slurry from the annulus into the casing or flow of wellbore fluids into the casing string as it is run. The float shoe also guides the casing toward the center of the hole to minimize hitting rock ledges or washouts as the casing is run into the wellbore.

A float collar is installed near the bottom of the casing string. Cement plugs land on it during the primary cementing operation, thus retaining inside the casing a small portion of the cement slurry that may have become contaminated as the top plug scrapes the inside of the casing. It is similar to a float shoe; often both are used for redundancy. The internal check valves may be flapper type or spring-loaded balls.

API Oiflfield casing float collar and float shoe Features

Reduce strain on the derrick while guiding casing past ledges and slough zones in the hole;
Provide a landing point for bottom and top cementing plugs
Provide a backpressure valve to prevent cement from flowing back into the inner diameter of the casing after the cement has turned the corner into the annulus and the top plug has been bumped.

API Oiflfield casing float collar and float shoe Specification

Specification(in)		O.D.(mm)	I.D. (mm)	Total length(mm)	Min.Dia. (mm)	Conn Type	Affordable strength of back-pressure(Mpa)
Float Shoe	5	140.3	110	495	50	5 BCSG	35
	5 1/2	153.67	122	514	55	5 1/2 BCSG	35
	7	194.46	162.5	533	77	7 BCSG	35
	9 5/8	269.88	225	550	77	9 5/8 BCSG	35
	13 3/8	339.7	319	550	77	133/8 BCSG	35
	20	534	475	652	77	20 BCSG	35
Float Collar	5	141.3	110	500	50	5 BCSG	35
	5 1/2	153.67	112	530	55	5 1/2BCSG	35
	7	194.46	162.5	586	77	7 BCSG	35
	9 5/8	270	225	720	77	9 5/8 BCSG	35
	13 3/8	365	319	720	77	133/8 BCSG	35
	20	533.4	475	720	77	20 BCSG	35

5" 35Mpa Casing Float Collar And Float Shoe API Oiflfield 0
