25-175-RHAM 31.75 Inch Sinker Bar Rod Pump Chrome Plated

Product Details

Place of Origin: China

Brand Name: Zhongshi

Certification: API, ISO, QHSE

Model Number: Sucker rod pump

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Standard exported packing

Delivery Time: 10~15 workdays

Payment Terms: L/C, D/P, T/T, Western Union, D/A

Supply Ability: 1000 SETS/MONTH

Get Best Price
High Light:

31.75 Inch Sinker Bar Rod Pump

,

25-175-RHAM Sinker Bar Rod Pump

,

25-175-RHAM rod lift pump

Type1:
Mechanical Seating
Type2:
Heavy Walled
Seating Loacation:
Top
Barrel Coating:
Chrome Plated
Barrel Type:
Heavy-walled Barrel
API Certificate:
API 11AX-0061
Type1:
Mechanical Seating
Type2:
Heavy Walled
Seating Loacation:
Top
Barrel Coating:
Chrome Plated
Barrel Type:
Heavy-walled Barrel
API Certificate:
API 11AX-0061
25-175-RHAM 31.75 Inch Sinker Bar Rod Pump Chrome Plated

25-175-RHAM Mechanical Seating Sucker Rod Pump

Mechanical Seating Sucker Rod Pump Description


The complete pump designation of an API pump adds dimensional diameters and lengths to the letter designations. This has been modified in the latest revision to incorporate all approved sizes and barrel types along with separating the extensions into the top and bottom lengths, if required. The complete API designation includes the following:

  • Nominal tubing size (from 1.9- to 4.5-in. OD) - represented with 2 digits
  • Basic bore diameter (from 1.0625 to 3.75 in.) - represented with 3 digits
  • Type of pump (rod or tubing) - R or T to indicate type
  • Type of barrel (heavy, thin, or X type) - single alpha character to represent the barrel type
  • Seating-assembly location (top or bottom) - A (for top), B (for bottom), or T (for bottom, traveling barel)
  • Type of seating assembly (cup or mechanical) - C or M to indicate type
  • Barrel length (ft) - single digit length
  • Nominal plunger length (ft.) - single digit length
  • Length (in.) of upper extension (if required)- single digit length
  • Length (in.) of lower extension (if required)- single digit length


Technical parameter list:

Specification Pump diameter

Barrel length

(ft)

Plunger length

(ft)

Stroke length

(ft)

Extension length

(ft)

Tubing size

EUE/NUE

Sucker rod

size

15-106RHBM Ø26.99





2.1-10





0.3-8





1.2-9





0.3-2.4

1.9”



5/8” 3/4”

15-106RHBC
20-125RHAM Ø31.75         2-3/8”
20-125RHAC
20-125RHBM
20-125RHBC
20-125RHBM/AC
25-150RHAM Ø38.10         2-7/8”
25-150RHAC
25-150RHBM
25-150RHBC
25-150RHBM/AC
25-175RHAM Ø44.45
25-175RHAC
25-175RHBM
25-175RHBC
25-175RHBM/AC
30-225RHAM Ø57.15         3-1/2”
30-225RHAC
30-225RHBM
30-225RHBC
30-225RHBM/AC




Pump components


There are seven major components for downhole rod pumps: standing and traveling valves, plunger, barrel, seating assembly, pull tube or valve rod (for insert pump), and the fittings that hold the assembled pump together.

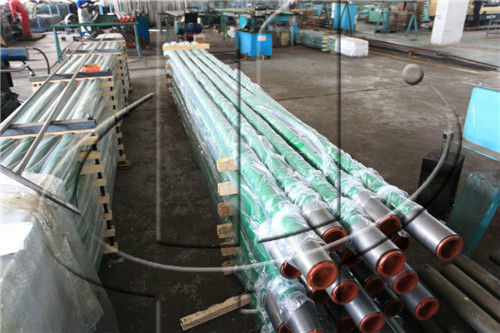

25-175-RHAM 31.75 Inch Sinker Bar Rod Pump Chrome Plated 0
