25-200-RWAM API 11AX-0061 Suker Rod Pump Thin Wall Top Mechanical

Name: 25-200-RWAM API 11AX-0061 Suker Rod Pump Thin Wall Top Mechanical
Brand: Puyang Zhongshi Group Co., Ltd.
SKU: Sucker rod pump
Price: 19,525.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Zhongshi

Certification: API, ISO, QHSE

Model Number: Sucker rod pump

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Standard exported packing

Delivery Time: 10~15 workdays

Payment Terms: L/C, D/P, T/T, Western Union, D/A

Supply Ability: 1000 SETS/MONTH

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                API 11AX-0061 Suker Rod Pump, 25-200-RWAM Suker Rod Pump, API 11AX-0061 anchor rod pump


Model:	25-200-RWAM	Type 1:	Thin Walled Pump
Type 2:	Mechanical Seating	Barrel Material:	Carbon Steel
Barrel Type:	Thin Walled	API Certificate:	API 11AX-0061

Model:	25-200-RWAM
Type 1:	Thin Walled Pump
Type 2:	Mechanical Seating
Barrel Material:	Carbon Steel
Barrel Type:	Thin Walled
API Certificate:	API 11AX-0061

25-200-RWAM API 11AX-0061 Suker Rod Pump Thin Wall Top Mechanical

25-200-RWAM Thin Wall Top Mechanical Suker Rod Pump

RWAM Thin Wall Top Mechanical Sucker Rod Pump Description

API recognizes two main types of pumps: rod and tubing. Rod pumps also are called insert pumps because they are run (inserted) in the production tubing. Tubing pumps are so named because the working barrel of this pump is coupled with the production-tubing string.

There is a wide range of plunger (or pump-bore) sizes standardized by the industry. The API pump-bore sizes that are currently available range from 1 1/16 to 3 3/4 in. in diameter. This 1 1/16-in. size has been added back in the latest edition of the standard. Additionally, a new barrel type has been accepted in the latest API Spec. 11AX. This is the "X-type" barrel. It has a thin-walled barrel configuration for threads on either end of the heavy-walled barrel and is available for metal plungers only. This type of pump does not require the extension couplings normally needed for heavy-walled barrel pumps. Thus, this pump reduces the burst or collapse concerns of the thin-walled extension couplings and allows deeper producing depths to be attained.

Technical parameter list:

Specification

Pump diameter

Barrel length

(ft)

Plunger length

(ft)

Stroke length

(ft)

Extension length

(ft)

Tubing size

EUE/NUE

Sucker rod

size

20-125RWAM	Ø31.75	2.1-10	0.3-8	1.2-9	/	2-3/8”	5/8” 3/4”
20-125RWAC
20-125RWBM
20-125RWBC
20-150RWAM	Ø38.10
20-150RWAC
20-150RWBM
20-150RWBC
25-200RWAM	Ø50.80					2-7/8”
25-200RWAC
25-200RWBM
25-200RWBC
30-250RWAM	Ø63.50					3-1/2”
30-250RWAC
30-250RWBM

Features

1. Model: 25-200-RWAM
2. Mechanical seating assembly
3. Thin walled sucker rod pump.

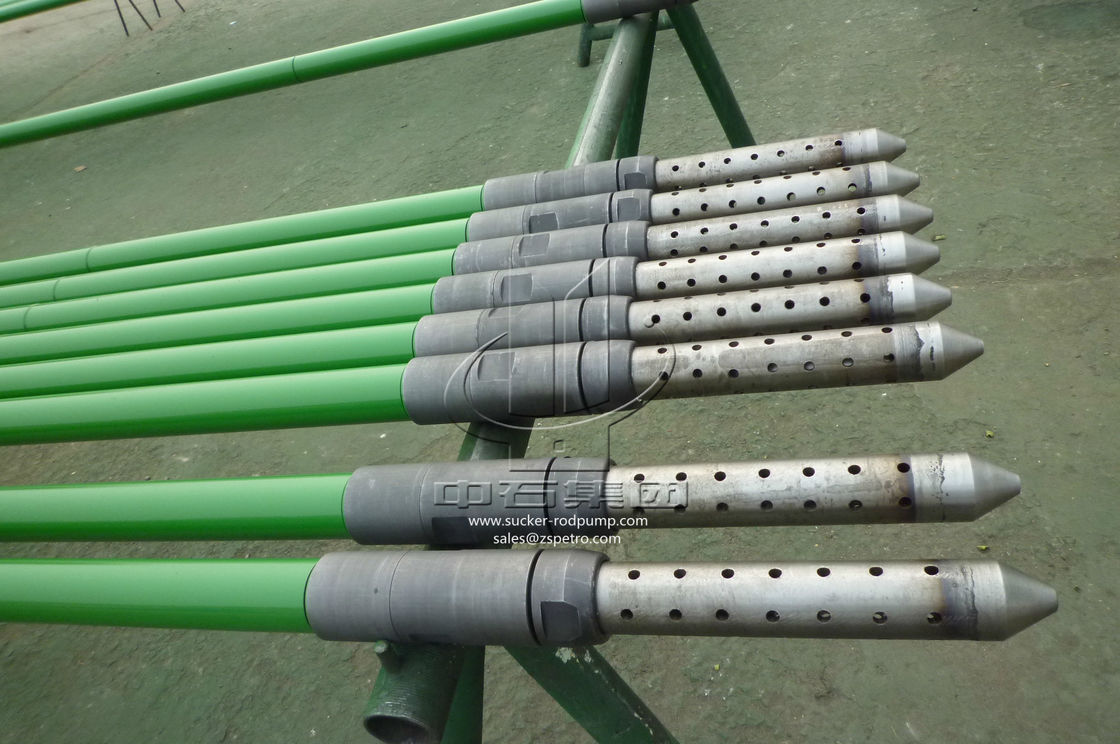

25-200-RWAM API 11AX-0061 Suker Rod Pump Thin Wall Top Mechanical 0
