Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API, ISO, QHSE
Model Number: ZS
Payment & Shipping Terms
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Standard exported packing
Delivery Time: 10~15 workdays
Payment Terms: L/C, D/P, T/T, Western Union, D/A
Supply Ability: 10000pcs/month
Parts Name: |
Plunger |
Standard: |
API 11AX |
Coating Type: |
Spray Metal |
Material: |
Carbon Steel |
Part Code: |
P |
Length: |
API Standard |
Parts Name: |
Plunger |
Standard: |
API 11AX |
Coating Type: |
Spray Metal |
Material: |
Carbon Steel |
Part Code: |
P |
Length: |
API Standard |
Finished Carbon Steel Plungers Oilfield Pump Parts
Carbon Steel Plungers Description
There are seven major components for downhole rod pumps: standing and traveling valves, plunger, barrel, seating assembly, pull tube or valve rod (for insert pump), and the fittings that hold the assembled pump together. The most common of these components and the final types of assembled pumps are covered by American Petroleum Institute (API) Specification 11AX.
The plungers move up and down to extract oil from the oilwell.
1045 steel spraying (B1), 1045 steel spraying (B2), 1045 steel chrome plating (A1), 1045 steel double chrome plating (A2).
Technical Specifications
| Model | Part No. | API No. | Mark |
| P21A | P21A-106(XX)-L | P21-106 | Plunger, Pin End, One Piece |
| P21A-125(XX)-L | P21-125 | ||
| P21A-150(XX)-L | P21-150 | ||
| P21A-175(XX)-L | P21-175 | ||
| P21A-200(XX)-L | P21-200 | ||
| P21A-225(XX)-L | P21-225 | ||
| P21A-250(XX)-L | P21-250 | ||
| P21I | P21I-106(XX)-L | P21-106 | Plunger, Pin End, One Piece, inclined plane |
| P21I-125(XX)-L | P21-125 | ||
| P21I-150(XX)-L | P21-150 | ||
| P21I-175(XX)-L | P21-175 | ||
| P21I-200(XX)-L | P21-200 | ||
| P21I-225(XX)-L | P21-225 | ||
| P21I-250(XX)-L | P21-250 | ||
| P21I-275(XX)-L | P21-275 | ||
| P21I-325(XX)-L | — | ||
| P21I-375(XX)-L | P21-375 | ||
| P22 | P22-125(XX)-L | P22-125 | Plunger, Assembled |
| P22-150(XX)-L | P22-150 | ||
| P22-175(XX)-L | P22-175 | ||
| P22-200(XX)-L | P22-200 | ||
| P22-225(XX)-L | P22-225 | ||
| P22-250(XX)-L | P22-250 | ||
| P22-275(XX)-L | P22-275 | ||
| P23 | P23-175(XX)-L | P23-175 | Plunger, Box End |
| P23-225(XX)-L | P23-225 | ||
| P23-275(XX)-L | P23-275 | ||
| P23-375(XX)-L | P23-375 |

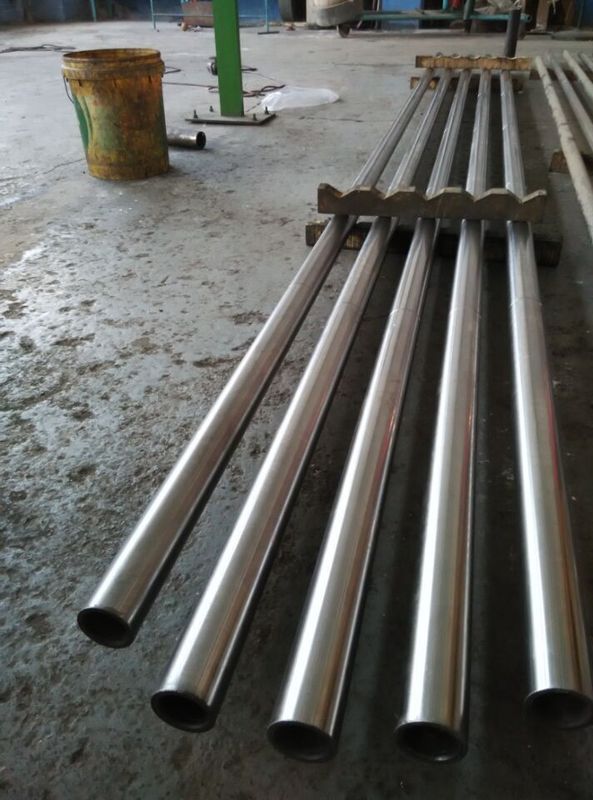

Photo:
