Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API，ISO，QHSE
Model Number: ZS
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard exported packing
Delivery Time: 10~15 workdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 Sets per Month
Product: |
Sucker Rod Pump Valve Ball And Valve Seat |
Port Size: |
1/2"-4" |
Application: |
Energy & Mining |
Warranty: |
12 Month |
Other Material: |
Stainless Steel, Tungsten Carbide |
Brand: |
Puyang Zhongshi |
Product: |
Sucker Rod Pump Valve Ball And Valve Seat |
Port Size: |
1/2"-4" |
Application: |
Energy & Mining |
Warranty: |
12 Month |
Other Material: |
Stainless Steel, Tungsten Carbide |
Brand: |
Puyang Zhongshi |

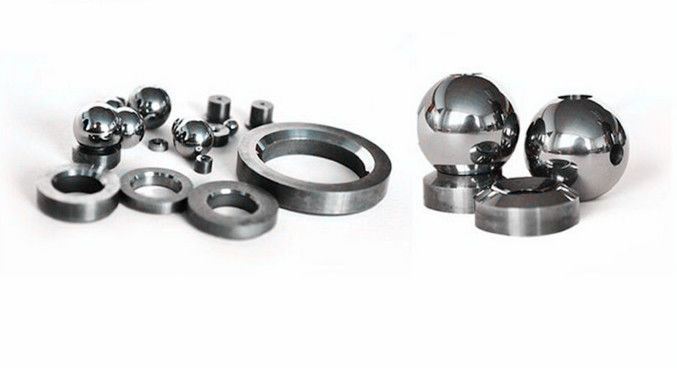

API 11AX Sucker rod pump Valve ball&seat
Product Description
For different material of the valve cage, we have different heat treatment process, to ensure the safety of the use and its mechanical properties.
Different material and structure of the valve cage according to different well conditions.
We can produce all pump accessories, at the same time, also undertake the processing of other equipment accessories.
API 11AX Sucker rod pump Valve ball&seat Features:
Material performance table
| CODE | INSTRUCTION | HARDNESS | MATERIAL |
| A1 | Stainless steel | Ball: HRC 58-65 | UNS 41000–UNS 44000 |
| Seat: HRC 52-56 | 9Cr18Mo & 6 Cr18Mo | ||
| B1 | Cobalt alloy casting | Ball: HRC 56-63 | Cobalt, chromium and tungsten alloy |
| Seat: HRC 50-56 | |||
| B2 | Cobalt alloy, powder metallurgy | Ball: HRC 53-60 | Cobalt, chromium and tungsten alloy |
| Seat: HRC 51-57 | |||
| C1 | Tungsten carbide | Ball: HRA 88-89 | Tungsten with cobalt adhesive |
| Seat: HRA 88-89.5 | |||
| C3 | Titanium carbon compounds | Ball: HRA 89-90.5 | Tungsten and titanium with cobalt adhesive carbon compounds |
| Seat: HRA 89-90.5 |
