Bottom Seating Assembly Downhole Pumps Of THBC Type
Bottom Seating Assembly Downhole Pumps Of THBC Type
Bottom Seating Assembly Downhole Pumps Of THBC Type

Bottom Seating Assembly Downhole Pumps Of THBC Type

Product Details

Place of Origin: China

Brand Name: Zhongshi

Certification: API, ISO, QHSE

Model Number: Sucker rod pump

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Standard exported packing

Delivery Time: 10~15 workdays

Payment Terms: L/C, D/P, T/T, Western Union, D/A

Supply Ability: 1000 SETS/MONTH

Get Best Price

Product Details

Product Description
Highlight:

Assembly Downhole Pumps

,

THBC Downhole Pumps

,

THBC tubing pumps

Pump Configuration:
Inserted
Barrel:
Heavy Walled Barrel
Tubing Pump Model:
THBC
Seating Type:
Cup Seating
Feature:
High Volume
Origin:
China
Pump Configuration:
Inserted
Barrel:
Heavy Walled Barrel
Tubing Pump Model:
THBC
Seating Type:
Cup Seating
Feature:
High Volume
Origin:
China
Bottom Seating Assembly Downhole Pumps Of THBC Type

Bottom Seating Assembly Downhole Pumps Of THBC Type



THBC downhole pump Description



THBC tubing pump is the bottom cup seating, barrel assembly is connection on the tubing string.

Fixed type tubing pumps standing valve assembly is attached below the pump barrel as part of the tubing string. A larger valve can be installed than with a retrievable type but the tubing must be pulled in order to repair it. When barrel repairs are required on a tubing pump, the entire tubing string must be pulled.

In the process of production, when traveling valve and standing valve appear problems,we can pull the traveling valve and standing valve out the well through the sucker rod string, plungerand the puller ,instead of pull the whole pump and tubing string out of the well, reduce the labor intensity of operation, reduce the operation cost.




Technical parameters:



THBC Model Pump diameter (in) Barrel length (ft) Plunger length (ft) Stroke length (ft) Extension length (ft) Tubing size EUE(in)
20-175THBC Ø44.45 7-34 1-26 4-29 2-8 2 3/8"
25-225THBC Ø57.15 2 7/8"
30-275THBC Ø69.85 3 1/2"
40-375THBC Ø95.25 4 1/2"



Features:



1. High volume and high pressure

2. Heavy walled barrel

3. Extensions can be added to both top and bottom of the barrel

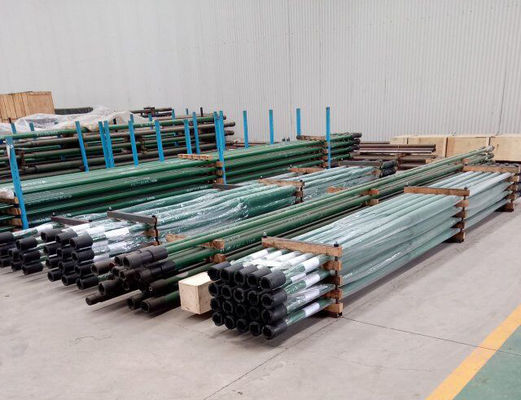

Bottom Seating Assembly Downhole Pumps Of THBC Type 0
