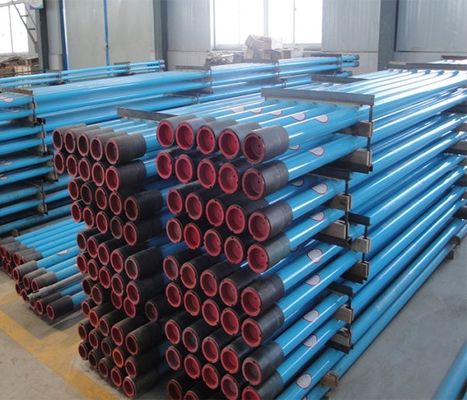

Customized API Standard Based Sucker Rod Pump
Customized API Standard Based Sucker Rod Pump Description
The Sucker Rod Pumping System (SRP) is considered the most popular artificial lift method worldwide. Its applications cover very low downhole pressure wells, slim holes, multiple completions, high temperature and viscous oil.
Insert pumps are installed by running in hole with the rod string. Once the pump reaches the desired pump depth, the hold down assembly seals with the tubing by seating into the hold down nipple. From there, your production fluids are effectively sealed from the reservoir fluid and pumping can begin. To remove the pump, simply pull the rod string out of hole.
API-RHAC, Rod, Stationary Heavy Wall Barrel, Cup Top Anchor Pump
API-RHBM, Rod, Stationary Heavy Wall Barrel, Mechanical Bottom Anchor Pump
API-RHBC, Rod, Stationary Heavy Wall Barrel, Cup Bottom Anchor Pump
API-RWAM, Rod, Stationary Thin Wall Barrel, Mechanical Top Anchor Pump
API-RWAC, Rod, Stationary Thin Wall Barrel, Cup Top Anchor Pump
API-RWBM, Rod, Stationary Thin Wall Barrel, Mechanical Bottom Anchor Pump
Technical parameter list:
| Pump parts code | Description | Tubing Size & Sucker Rod Pump Size | |||
| 2 3/8x1 1/4 | 2 3/8x1 1/2 | 2 7/8x2 | 3 1/2x2 1/2 | ||
| Pump models | |||||
| 20-125 | 20-150 | 25-200 | 30-250 | ||
| B21 | Bushing, Valve Rod | B21-20 | B21-20 | B21-25 | B21-30 |
| R11 | Rod, Valve | R11-20 | R11-20 | R11-25 | R11-30 |
| C12 | Cage, Top Plunger | C12-125 | C12-150-20 | C12-200 | C12-250 |
| P21 | Plunger, One Piece | P21-125 | P21-150 | P21-200 | P21-250 |
| C13 | Cage, Closed, Pin Plunger | C13-125 | C13-150 | C13-200 | C13-250 |
| V11 | Traveling Valve | V11-125 | V11-150 | V11-200 | V11-250 |
| P12 | Plug Seat | P12-125 | P12-150 | P12-200 | P12-250 |
| G11 | Guide, Valve Rod | G11-20 | G11-20 | G11-25 | G11-30 |
| S21 | Seating Assembly, Mechanical Top Lock | S21-20 | S21-25 | S21-25 | S21-30 |
| B11 | Barrel, Thin Wall | B11-125 | B11-150 | B11-200 | B11-250 |
| C14 | Cage, Closed Barrel |
C14-20- 125 |
C14-20 | C14-25 | C14-30 |
| V11 | Standing Valve | V11-175 | V11-175 | V11-225 | V11-250 |
| B22 | Bushing, Seat, Barrel Cage | B22-20 | B22-20 | B22-25 | B22-30 |
| N14 | Nipple, Seating, Mechanical Top Lock | N14-20 | N14-25 | N14-25 | N14-30 |
.
1. Insertable into the tubing
2. Proprietary improvements
3. Can be customized based on the well conditions
