Product Details:
Payment & Shipping Terms:
|
| Product Name: | Double Chrome Plating Plunger | Surface Coating: | Double Chrome Plating |
|---|---|---|---|
| Technology: | Chrome Plating | Application: | Sucker Rod Pump Parts |
| Material: | Carbon Steel In Usual | Parts Code: | P |
| High Light: | Oilfield Pump Parts Pump Plungers,Chrome Plating Pump Plungers,API Pump Plungers |
||
Double Chrome Plating Pump Plungers Oilfield Pump Parts
Double Chrome Plating Pump Plunger Description:
The technology for the plungers: Besides the Spray Metal Plunger, there also is the chrome plated plungers. Chrome plating technology has normal chrome plating and the double chrome plating.
API code for the different plungers: 1045 steel spraying (B1), 1045 steel spraying (B2), 1045 steel chrome plating (A1), 1045 steel double
chrome plating (A2).
Pump plungers technical parameters
| Code | Model No. | API No. | Explains |
| P21A | P21A-106(XX)-L | P21-106 | Plunger, Pin End, One Piece |
| P21A-125(XX)-L | P21-125 | ||
| P21A-150(XX)-L | P21-150 | ||
| P21A-175(XX)-L | P21-175 | ||
| P21A-200(XX)-L | P21-200 | ||
| P21A-225(XX)-L | P21-225 | ||
| P21A-250(XX)-L | P21-250 | ||
| P21I | P21I-106(XX)-L | P21-106 | Plunger, Pin End, One Piece, inclined plane |
| P21I-125(XX)-L | P21-125 | ||
| P21I-150(XX)-L | P21-150 | ||
| P21I-175(XX)-L | P21-175 | ||
| P21I-200(XX)-L | P21-200 | ||
| P21I-225(XX)-L | P21-225 | ||
| P21I-250(XX)-L | P21-250 | ||
| P21I-275(XX)-L | P21-275 | ||
| P21I-325(XX)-L | — | ||
| P21I-375(XX)-L | P21-375 | ||
| P22 | P22-125(XX)-L | P22-125 | Plunger, Assembled |
| P22-150(XX)-L | P22-150 | ||
| P22-175(XX)-L | P22-175 | ||
| P22-200(XX)-L | P22-200 | ||
| P22-225(XX)-L | P22-225 | ||
| P22-250(XX)-L | P22-250 | ||
| P22-275(XX)-L | P22-275 | ||
| P23 | P23-175(XX)-L | P23-175 | Plunger, Box End |
| P23-225(XX)-L | P23-225 | ||
| P23-275(XX)-L | P23-275 | ||
| P23-375(XX)-L | P23-375 |
Marks:
1)“XX” is Material identification symbol;
2)L is standard strength for plunger;
3)The outer surface of the plunger can be processed with annular grooves according to user needs.

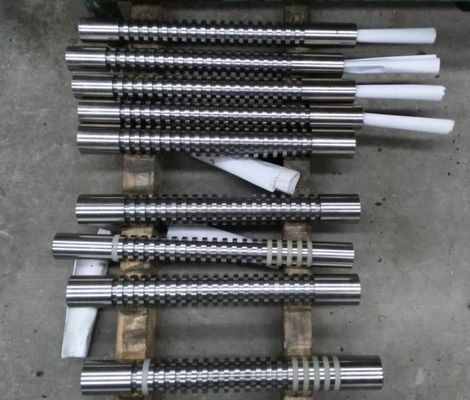

Plunger pictures:
