Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API, ISO, QHSE
Model Number: ZS
Payment & Shipping Terms
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Standard exported packing
Delivery Time: 10~15 workdays
Payment Terms: L/C, D/P, T/T, Western Union, D/A
Supply Ability: 10000pcs/month
Product Name: |
Standing Valve Cage |
Coating Type: |
No Coating |
Standard: |
API 11AX |
Code: |
C |
Material: |
Carbon Steel And Low Alloy Steel |
Material2: |
Brass And Stainless Steel |
Production: |
Standard Or As Requirements |
API 11AX Code: |
0061 |
Product Name: |
Standing Valve Cage |
Coating Type: |
No Coating |
Standard: |
API 11AX |
Code: |
C |
Material: |
Carbon Steel And Low Alloy Steel |
Material2: |
Brass And Stainless Steel |
Production: |
Standard Or As Requirements |
API 11AX Code: |
0061 |
Standing Valve Cage Low Alloy Steel Oilfield Pump Parts
Standing valve cage description:
Pump cage belongs to the pump accessories.
There are seven major components for downhole rod pumps: standing and traveling valves, plunger, barrel, seating assembly, pull tube or valve rod (for insert pump), and the fittings that hold the assembled pump together.
While the pump manufacturers usually produce their pump components with an acceptable quality program (such as ISO 9001[15] or API Spec. Q1[16]), most pump shops are not covered under these rigorous plans.
API Specifications of Rod Pump Plungers
| API Model | Plunger part No. | API No. | Description |
| P21A | P21A-106(XX)-L | P21-106 | Plunger, Pin End, One Piece |
| P21A-125(XX)-L | P21-125 | ||
| P21A-150(XX)-L | P21-150 | ||
| P21A-175(XX)-L | P21-175 | ||
| P21A-200(XX)-L | P21-200 | ||
| P21A-225(XX)-L | P21-225 | ||
| P21A-250(XX)-L | P21-250 | ||
| P21I | P21I-106(XX)-L | P21-106 | Plunger, Pin End, One Piece, inclined plane |
| P21I-125(XX)-L | P21-125 | ||
| P21I-150(XX)-L | P21-150 | ||
| P21I-175(XX)-L | P21-175 | ||
| P21I-200(XX)-L | P21-200 | ||
| P21I-225(XX)-L | P21-225 | ||
| P21I-250(XX)-L | P21-250 | ||
| P21I-275(XX)-L | P21-275 | ||
| P21I-325(XX)-L | — | ||
| P21I-375(XX)-L | P21-375 | ||
| P22 | P22-125(XX)-L | P22-125 | Plunger, Assembled |
| P22-150(XX)-L | P22-150 | ||
| P22-175(XX)-L | P22-175 | ||
| P22-200(XX)-L | P22-200 | ||
| P22-225(XX)-L | P22-225 | ||
| P22-250(XX)-L | P22-250 | ||
| P22-275(XX)-L | P22-275 | ||
| P23 | P23-175(XX)-L | P23-175 | Plunger, Box End |
| P23-225(XX)-L | P23-225 | ||
| P23-275(XX)-L | P23-275 | ||
| P23-375(XX)-L | P23-375 |

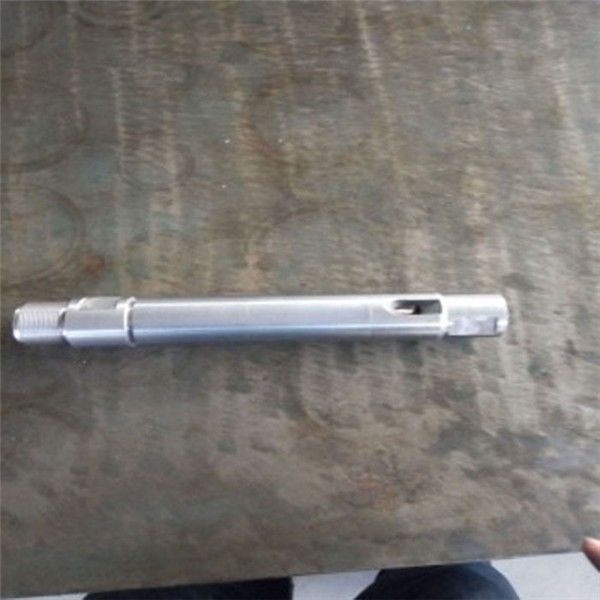

Photo:
