Mechanical Oilfield Pump Parts Bottom Lock Seating Nipple

Mechanical Oilfield Pump Parts Bottom Lock Seating Nipple
Mechanical Oilfield Pump Parts Bottom Lock Seating Nipple

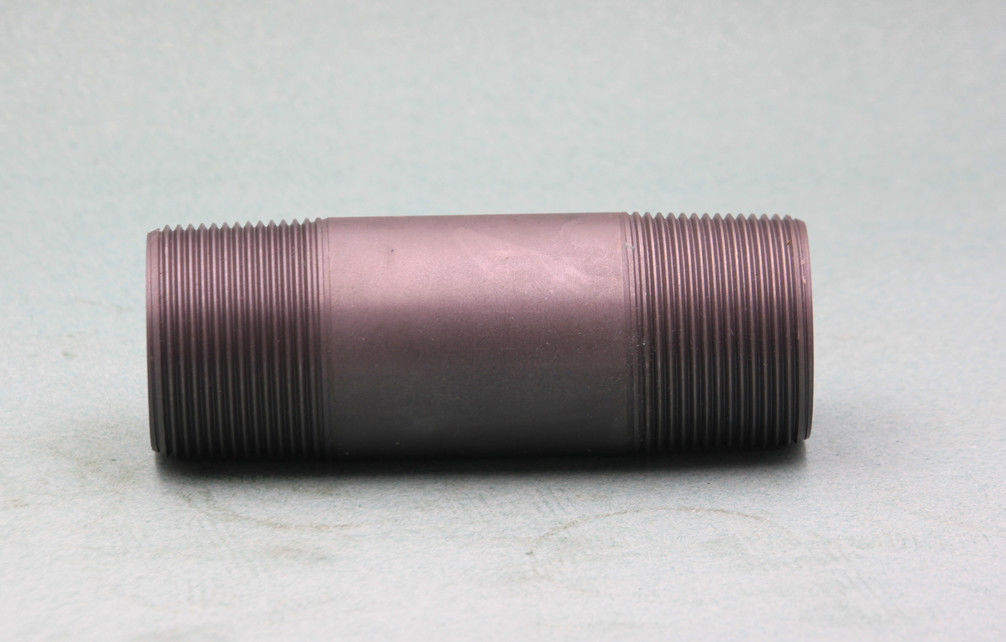

Large Image :  Mechanical Oilfield Pump Parts Bottom Lock Seating Nipple

Product Details:

Place of Origin: China
Brand Name: Zhongshi
Certification: API,ISO,QHSE
Model Number: Sucker rod pump

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard exported packing
Delivery Time: 10~15 workdays
Payment Terms: T/T, D/P, D/A, L/C, Western Union
Supply Ability: 1000 Sets per Month
Detailed Product Description
Product Name: Bottom Eating Nipple Type: Mechanical
Application: Pump Accessories Material: Carbon Steel In Usual
Location: Bottom Other Material: Alloy Steel
High Light:

Bottom Lock Seating Nipple

,

Oilfield Pump Seating Nipple

,

Seating Nipple Oilfield Pump Parts

Bottom Lock Seating Nipple Oilfield Pump Parts



Bottom seating nipple description:



The most common of pump components and the final types of assembled pumps are covered by API standard
Sucker rod pump is equipped with a seating nipple(there are two seating nipples in API-RHBM-AC) , seating nipple connection on the tubing string, down to the bottom of the well with the tubing string.

Mechanical seating nipple is one of the key pump accessories. The location of mechanical seating nipple is top or bottom.



Rod pump technical specifications:



PUMP MODEL Nominal Diameter (mm) Plunger Length (m) Stroke (m) Pump Constant (m3/d) Thread of Connecting Tubing Thread of Sucker Rod Max.Pump OD.(mm)
RHA 20-106RHAC/M 28

0.6

0.9

1.2

1.5

0.6-8.0 0.886 2 3/8 3/4 45.72/47.63
20-125RHAC/M 32 1.140 2 3/8 3/4 45.72/47.63
25-150RHAC/M 38 1.642 2 7/8 3/4 58.67/59.54
25-175RHAC/M 44 2.235 2 7/8 3/4 58.67/59.54
30-225RHAC/M 57 3.694 3 1/2 3/4 71.37/72.24
RHB 20-106RHBC/M 28 0.886 2 3/8 3/4 45.72/47.63
20-125RHBC/M 32 1.140 2 3/8 3/4 45.72/47.63
25-150RHBC/M 38 1.642 2 7/8 3/4 58.67/59.54
25-175RHBC/M 44 2.235 2 7/8 3/4 58.67/59.54
30-225RHBC/M 57 3.694 3 1/2 3/4 71.37/72.24
RWA 20-125RWAC/M 32 1.140 2 3/8 3/4 45.72/47.63
20-150RWAC/M 38 1.642 2 3/8 3/4 45.72/47.63
25-200RWAC/M 50.8 2.920 2 7/8 3/4 58.67/59.54
30-250RWAC/M 63.5 4.560 3 1/2 3/4 71.37/72.24
RWB 20-125RWBC/M 32 1.140 2 3/8 3/4 58.67/59.54
20-150RWBC/M 38 1.642 2 3/8 3/4 45.72/47.63
25-200RWBC/M 50.8 2.920 2 7/8 3/4 58.67/59.54
30-250RWBC/M 63.5 4.560 3 1/2 3/4 71.37/72.24





Mechanical Oilfield Pump Parts Bottom Lock Seating Nipple 0
