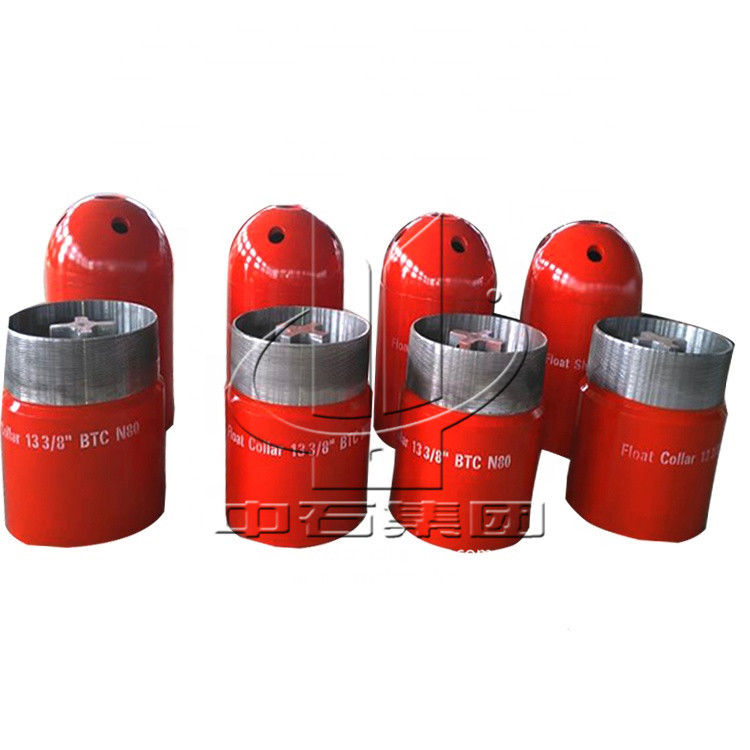

Non Rotating 5" 7" Casing Shoe And Float Collar API thread

Non Rotating 5" 7" Casing Shoe And Float Collar API thread
Non Rotating 5" 7" Casing Shoe And Float Collar API thread

Large Image :  Non Rotating 5" 7" Casing Shoe And Float Collar API thread

Product Details:

Place of Origin: China
Brand Name: Puyang Zhongshi Group
Certification: API,ISO,QHSE
Model Number: 4 1/2"~36"

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: depends on quantity
Payment Terms: T/T, MoneyGram
Detailed Product Description
Product: Oilfield Non Rotating Casing Float Collar And Float Shoe Type: Non-rotating
Size: 4 1/2''--20" Material: P-110, K55, J55, N80,L80
Thread: API Thread Or As Required Service: OEM Service
High Light:

7" Casing Shoe And Float Collar

,

5" Casing Shoe And Float Collar

,

Casing Shoe And Float Collar API

Oilfield Non Rotating Casing Float Collar and Float Shoe


Float collar and float shoe serve as the backbone of casing equipment used during primary cementing operations to prevent cementing mud flowing back


Oilfield Non Rotating Casing Float Collar and Float Shoe Features



  • The device can be connected directly to the casing of the same type.
  • Reliable back-pressure leak proof structure, enable grout or slurry flow with less resistance.
  • Valve seat and valve disk can effectively prevent grout from flowing back.
  • Non-rotating landing plate is available on request.
  • Either PDC or rock bit drillable.





Oilfield Non Rotating Casing Float Collar and Float Shoe Specification

Specification(in)O.D.(mm)Total length(mm)I.D. (mm)Min.Dia. (mm)Conn TypeAffordable strength of back-pressure(Mpa)
Float Collar5141.3500110505 BCSG35
5 1/2153.67530112555 1/2BCSG35
7194.46586162.5777 BCSG35
9 5/8270720225779 5/8 BCSG35
13 3/836572031977133/8 BCSG35
20533.47204757720 BCSG35
Float Shoe5140.3495110505 BCSG35
5 1/2153.67514122555 1/2 BCSG35
7194.46533162.5777 BCSG35
9 5/8269.88550225779 5/8 BCSG35
13 3/8339.755031977133/8 BCSG35
205346524757720 BCSG35
