Product Details
Place of Origin: China
Brand Name: Puyang Zhongshi Group
Certification: API,ISO,QHSE
Model Number: 4 1/2"~20"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: depends on quantity
Payment Terms: T/T, MoneyGram
Product: |
Oilfied Non-Rotary Cementing Wiper Plugs |
Material: |
NBR |
Type: |
Non-rotating |
Feature: |
PDC Drillable |
Application: |
Drilling |
Working Pressure: |
≥15MP |
Product: |
Oilfied Non-Rotary Cementing Wiper Plugs |
Material: |
NBR |
Type: |
Non-rotating |
Feature: |
PDC Drillable |
Application: |
Drilling |
Working Pressure: |
≥15MP |

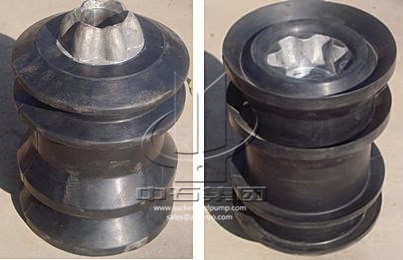

Oilfied Non-Rotary Cementing Wiper Plugs
Cementing Plugs are used to remove the mud during cementing operations. There are two types of Cementing Plugs used in the cementing process.These series of cementing plug have reinforced locking teeth built into the plugs, which lock together between the plugs and the float equipment to eliminate rotation of the plug during drill out. These plugs are made of Graded Rubber with Aluminum or Plastic core inside, No other metal parts are used and these plugs are completely PDC drill able.
| Casing | Casing Weight Range | Wiper Fin O.D | ||
| Size(in) | mm | in | mm | in |
| 4 1/2" | 14.14-17.26 | 9.50-11.60 | 110 | 4.331 |
| 5" | 17.11-35.86 | 11.50-24.10 | 122 | 4.803 |
| 5 1/2" | 20.83-39.88 | 14.00-26.80 | 135 | 5.315 |
| 7" | 25.30-56.55 | 17.00-38.00 | 170 | 6.693 |
| 7 5/8" | 35.72-63.69 | 24.00-42.00 | 185 | 7.283 |
| 9 5/8" | 53.57-79.62 | 36.00-53.50 | 235 | 9.252 |
| 13 3/8" | 71.43-107.15 | 48.00-72.00 | 333 | 13.11 |
| 20" | 139.89-197.93 | 94.00-133.00 | 498 | 19.606 |
