Hinged Metal Steel Fins Cementing Basket Well Drilling

Name: Hinged Metal Steel Fins Cementing Basket Well Drilling
Brand: Puyang Zhongshi Group Co., Ltd.
SKU: 4 1/2"~20"
Price: 4,500.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Puyang Zhongshi Group

Certification: API,ISO,QHSE

Model Number: 4 1/2"~20"

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Wooden Box

Delivery Time: depends on quantity

Payment Terms: T/T, MoneyGram

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                Steel Fins Cementing Basket, Hinged Metal Cementing Basket, Cementing Basket Well Drilling


Product:	Hinged Metal Steel Fins Cementing Basket	Material:	Carbon Steel
Usage:	Well Drilling	Feature:	Eco-Friendly
Processing:	Casting	Condition:	Brand New

Product:	Hinged Metal Steel Fins Cementing Basket
Material:	Carbon Steel
Usage:	Well Drilling
Feature:	Eco-Friendly
Processing:	Casting
Condition:	Brand New

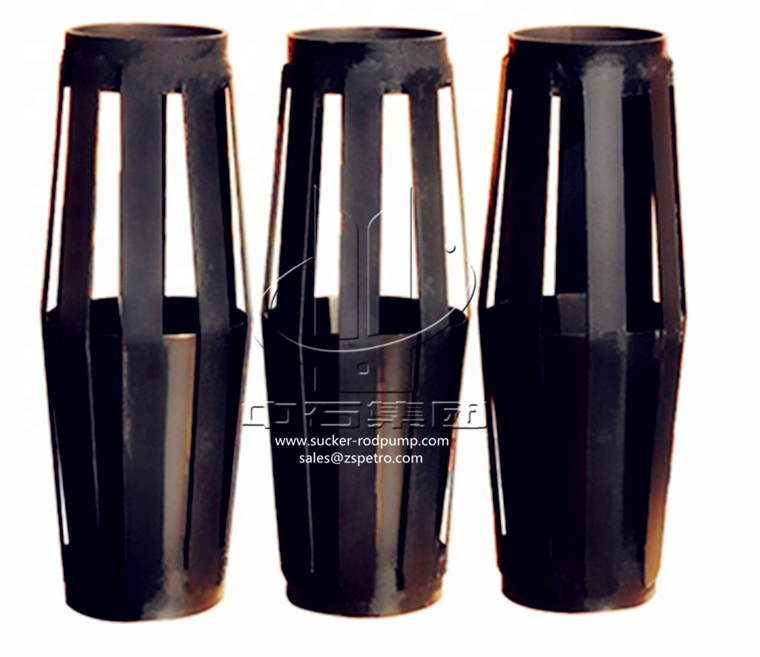

Hinged Metal Steel Fins Cementing Basket Well Drilling

Hinged Metal Steel Fins Cementing Basket

Each Slip on welded cement basket is made of high power metal to provide maximum flexibility and fluid passage while maintaining optimum support. The cement basket can be rotated and reciprocated and available in a choice of welded and non- welded convex shape bows.

Hinged Metal Steel Fins Cementing Basket Features

flexible bows that are mounted on the end collar.
available in 4 ½" to 20" sizes and any kind of specific sizes
Bows are hardened and tempered for maximum strength and uniformit
The cementing basket can expand or contract as needed and can be rotated or reciprocated

Hinged Metal Steel Fins Cementing Basket Specification

Casing Size (in)	No. of Bows	Total Length	Basket O.D		Min. Hose Size (in)
Casing Size (in)	No. of Bows	Total Length	in	mm	Min. Hose Size (in)
4 1/2	10	24 1/2	12 1/2	317.5	6
5	10	24 1/2	13	342.9	6
5 1/2	12	24 1/2	13 1/2	342.9	7 1/4
6 5/8	12	24 1/2	14 5/8	371.5	8 3/8
7	14	24 1/2	15	381	8 3/8
7 5/8	14	24 1/2	15 5/8	396.9	9 1/2
8 5/8	16	24 1/2	16 5/8	422.3	10 5/8
9 5/8	18	24 1/2	17 5/8	447.7	11 5/8
10 3/4	18	24 1/2	18 3/4	476.3	12 3/4
11 3/4	20	24 1/2	19 3/4	501.7	13 3/4
11 3/8	24	24 1/2	21 3/8	542.9	15 1/2
16	28	24 1/2	24	609.6	18
18 5/8	34	24 1/2	26 5/8	676.3	20 5/8
20	34	24 1/2	28	711.2	22

Hinged Metal Steel Fins Cementing Basket Well Drilling 0
