Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API, ISO, QHSE
Model Number: Sucker rod pump
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard exported packing
Delivery Time: 10~15 workdays
Payment Terms: L/C, D/P, T/T, Western Union, D/A
Supply Ability: 1000 SETS/MONTH
Pump Type: |
Rod Pump, Tubing Pump |
Barrel Coating: |
Nickel Carbide |
Barrel Material: |
AISI 1045 Steel |
Barrel Technology: |
Electric Plating |
Barrel Type: |
Fixed |
Application: |
Oil Production |
Pump Type: |
Rod Pump, Tubing Pump |
Barrel Coating: |
Nickel Carbide |
Barrel Material: |
AISI 1045 Steel |
Barrel Technology: |
Electric Plating |
Barrel Type: |
Fixed |
Application: |
Oil Production |

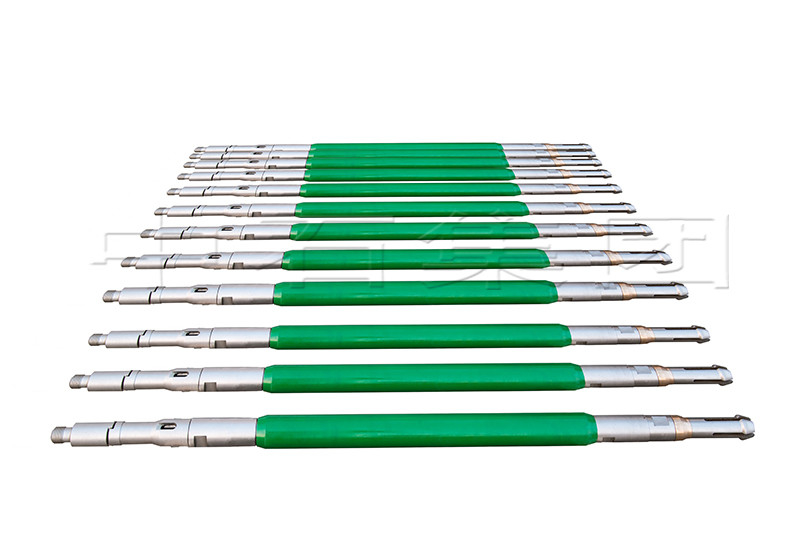

Nickel Carbide Bore Hole Surface Treating Downhole Pump
Nichel carbide bore hole surface downhole pump Description:
The inner surface of the pump barrel from Puyang Zhongshi group is processed with chrome plating technology or nickel carbide
API recognizes two main types of pumps: rod and tubing. Rod pumps also are called insert pumps because they are run (inserted) in the production tubing. Tubing pumps are so named because the working barrel of this pump is coupled with the production-tubing string.
Additionally, there are special pump components, such as valve rods, valves, and tubing drains, that are sometimes beneficial in situations in which the capabilities of normal API pumps and components have been exceeded. The manufacturer of special, non-API pumps and components should be contacted to determine the working capabilities and limitations of any of these specialty components. However, these items should be selected with care and used only after the best production effort has been thoroughly tested with standard components.
Technical parameters:
| Models | Pump diameter (in) | Barrel length (ft) | Plunger length (ft) | Stroke length (ft) | Extension length (ft) | Tubing size EUE(in) |
| 20-175THC | Ø44.45 | 7-34 | 1-26 | 4-29 | 2-8 | 2 3/8" |
| 25-225THC | Ø57.15 | 2 7/8" | ||||
| 30-275THC | Ø69.85 | 3 1/2" | ||||
| 40-375THC | Ø95.25 | 4 1/2" |
Features:
1. Barrel bore surface treating technology: nickel carbide
2. Heavy wall barrel or thin wall barrel
3. Anti-corrosion property
