Large Volume Oil Production Downhole Pumps Bottom Seating

Large Volume Oil Production Downhole Pumps Bottom Seating
Large Volume Oil Production Downhole Pumps Bottom Seating

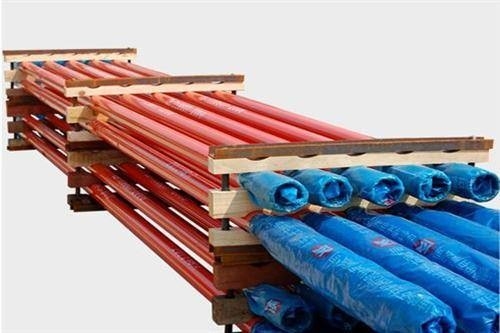

Large Image :  Large Volume Oil Production Downhole Pumps Bottom Seating

Product Details:

Place of Origin: China
Brand Name: Zhongshi
Certification: API, ISO, QHSE
Model Number: Sucker rod pump

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard exported packing
Delivery Time: 10~15 workdays
Payment Terms: L/C, D/P, T/T, Western Union, D/A
Supply Ability: 1000 SETS/MONTH
Detailed Product Description
Pump Name: Tubing Pump Barrel Type: Heavy Walled
Seating Location: Bottom Seating Type: Cup Type Or Mechanical Type
Barrel Structure: Stationary Origin: China
High Light:

Oil Production Downhole Pumps

,

Large Volume Downhole Pumps

,

Downhole Pumps Bottom Seating

Large Volume Oil Production Downhole Pumps



Large volume oil production downhole pump Description:



Large volume oil production downhole pump is the tubing pump. All tubing pumps are heavy walled, is stronger than rod pumps.

For this type of pump, the barrel is put in the well to the designed depth with tubing. And then put the plunger into the barrel with sucker rod. Given the tubing size, the bore of the tubing pump is larger than that of the rod pump, so the pump rate is higher.



There is a wide range of plunger (or pump-bore) sizes standardized by the industry. The API pump-bore sizes that are currently available range from 1 1/16 to 3 3/4 in. in diameter. This 1 1/16-in. size has been added back in the latest edition of the standard. Additionally, a new barrel type has been accepted in the latest API Spec. 11AX. This is the "X-type" barrel. It has a thin-walled barrel configuration for threads on either end of the heavy-walled barrel and is available for metal plungers only. This type of pump does not require the extension couplings normally needed for heavy-walled barrel pumps. Thus, this pump reduces the burst or collapse concerns of the thin-walled extension couplings and allows deeper producing depths to be attained.




Tubing type downhole pump technical parameters:



THM Model Pump OD (in) Barrel length (ft) Plunger length (ft) Stroke length (ft) Extension length (ft) Tubing size EUE(in)
20-175THM Ø44.45 7-34 1-26 4-29 2-8 2 3/8"
25-225THM Ø57.15 2 7/8"
30-275THM Ø69.85 3 1/2"
40-375THM Ø95.25 4 1/2"



Features:



1. Tubing pump is the strongest pump. It has large flowing area for fluid and it is suitable for producing viscosity oil.

2. Standing valve can not be pulled out
