Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API, ISO, QHSE
Model Number: Sucker rod pump
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard exported packing
Delivery Time: 10~15 workdays
Payment Terms: L/C, D/P, T/T, Western Union, D/A
Supply Ability: 1000 SETS/MONTH
Rod Pump Type: |
Thin Walled |
Surface Technology: |
Nickel Carbide |
Anchor Location: |
Top Or Bottom |
Anchor Type 1: |
Mechanical |
Anchor Type 2: |
Cup |
Origin: |
China |
Rod Pump Type: |
Thin Walled |
Surface Technology: |
Nickel Carbide |
Anchor Location: |
Top Or Bottom |
Anchor Type 1: |
Mechanical |
Anchor Type 2: |
Cup |
Origin: |
China |
Nickel Carbide Technology Thin Walled Sucker Rod Pump
Nickel carbide technology thin wall sucker rod pump Description
Pump barrel inner surface coating technology: nickel carbide
API-RWAM, Rod, Stationary Thin Wall Barrel, Mechanical Top Anchor Pump
API-RWAC, Rod, Stationary Thin Wall Barrel, Cup Top Anchor Pump
API-RWBM, Rod, Stationary Thin Wall Barrel, Mechanical Bottom Anchor Pump
Rod pump should be installed inside the tubing with the sucker rod. It is not necessary to pull the tubing out of the well when checking the pump, which can make the operation easier and quicker. According to seating mode, the rod pump can be divided into two types: cup hold-down pump and mechanical hold-down pump. According to the anchored position, the rod pump can be divided into top anchor pump and bottom anchor pump (including stationary barrel type and traveling barrel type).
Features:
1. fixed barrel structure
2. Barrel length 7-34ft
Rod pump and tubing pump API technical parameters:
| Pump models | mm(in) Nominal Dia. |
m(ft)Plunger Length |
Stroke m | m3/d Pump Constant |
Tubing And Thread |
Sucker Rod |
| 20-125TH | 32(1.25) | 1.2-1.8 (4-6) | 0.6-7.3 | 1.14 | 27/8NU/EU | ¾ |
| 20-125RHAC/M | 32(1.25) | 0.6-7.3 | 1.14 | 27/8NU/EU | ¾ | |
| 20-125RHBC/M | 32(1.25) | 0.6-7.3 | 1.14 | 27/8NU/EU | ¾ | |
| 20-125RHTC/M | 32(1.25) | 0.6-7.3 | 1.14 | 27/8NU/EU | ¾ | |
| 25-125TH | 32(1.25) | 0.6-7.3 | 1.14 | 27/8NU/EU | ¾ | |
| 25-150RHAC/M | 38(1.50) | 0.6-7.3 | 1.64 | 27/8NU/EU | ¾ | |
| 25-150RHBC/M | 38(1.50) | 0.6-7.3 | 1.64 | 27/8NU/EU | ¾ | |
| 25-150RHTC/M | 38(1.50) | 0.6-7.3 | 1.64 | 27/8NU/EU | ¾ | |
| 20-150TH | 38(1.50) | 0.6-7.3 | 1.64 | 27/8NU/EU | ¾ | |
| 25-150TH | 38(1.50) | 0.6-7.3 | 1.64 | 27/8NU/EU | ¾ | |
| 20-175TH | 44(1.75) | 0.6-7.3 | 2.24 | 27/8NU/EU | ¾ | |
| 25-175RHAC/M | 44(1.75) | 0.6-7.3 | 2.24 | 27/8 | ¾ | |
| 25-175RHBC/M | 44(1.75) | 0.6-7.3 | 2.24 | 27/8NU/EU | ¾ | |
| 25-175RHTC/M | 44(1.75) | 0.6-7.3 | 2.24 | 27/8NU/EU | ¾ | |
| 25-175TH | 44(1.75) | 0.6-7.3 | 2.24 | 27/8NU/EU | ¾ | |
| 25-225TH | 57(2.25) | 0.6-7.3 | 3.69 | 27/8NU/EU | ¾ | |
| 30-275TH | 70(2.75) | 0.6-7.3 | 5.50 | 3½NU/EU | 7/8 | |
| 30-225RHAC/M | 57(2.25) | 0.6-7.3 | 3.69 | 3½ NU/EU | ¾ | |
| 30-225RHBC/M | 57(2.25) | 0.6-7.3 | 3.69 | 3½ NU/EU | ¾ | |
| 30-225RHTC/M | 57(2.25) | 0.6-7.3 | 3.69 | 3½ NU/EU | ¾ | |
| 35-325TH | 83(3.25) | 0.6-7.3 | 7.70 | 4NU/EU | 7/8 | |
| 40-375TH | 95(3.75) | 0.6-7.3 | 10.26 | 4½NU/EU | 1 |

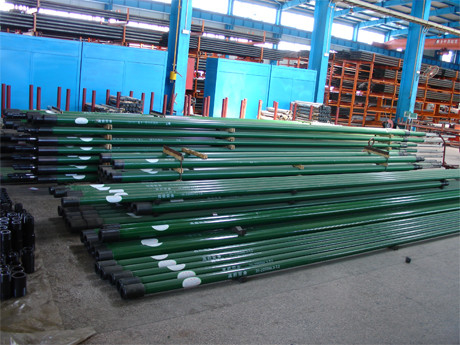

Product photo:
