Name: Top And Bottom Cup Seating Sucker Rod Pump Stationary Barrel
Brand: Puyang Zhongshi Group Co., Ltd.
SKU: Sucker rod pump
Price: 19,525.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Zhongshi

Certification: API, ISO, QHSE

Model Number: Sucker rod pump

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Standard exported packing

Delivery Time: 10~15 workdays

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 1000 SETS/MONTH

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                Bottom Cup Sucker Rod Pump, Top Cup Sucker Rod Pump, Stationary Barrel SRP Pump


Barrel Type 1:	Heavy Wall Or Thin Wall	Seating Type:	Cup Seating
Seating Location:	Top Or Bottom	Barrel Structure:	Stationary
Model 1:	RHAC	Model 2:	RHBC
Model 3:	RWAC

Barrel Type 1:	Heavy Wall Or Thin Wall
Seating Type:	Cup Seating
Seating Location:	Top Or Bottom
Barrel Structure:	Stationary
Model 1:	RHAC
Model 2:	RHBC
Model 3:	RWAC

Top And Bottom Cup Seating Sucker Rod Pump Stationary Barrel

Top And Bottom Cup Seating Sucker Rod Pump

Cup seating sucker rod pump description:

Sucker rod pump is classified into cup seating and mechanical seating. The model of cup seating is as follows,

API-RHAC, Rod, Stationary Heavy Wall Barrel, Cup Top Anchor Pump

API-RHBC, Rod, Stationary Heavy Wall Barrel, Cup Bottom Anchor Pump

API-RWAC, Rod, Stationary Thin Wall Barrel, Cup Top Anchor Pump

The cup seating location is on top or at bottom, but the cup seating type is just suitable for the oil well of lower temperature

Rod pump should be installed inside the tubing with the sucker rod.

Sucker rod pump technical parameters:

Item	Sucker rod pump
Certificate	API 11AX-0061
Type	Rod pump, insert pump
Material	Carbon steel for main parts, or as customer's request
Processing equipments	1. CNC turning machine 2. Chrome plating machine 3. Metal spray welding machine 4. Spraying metal remelting machine 5. Honing machine 6. Grinding machine 7. Hydraulic Pressure testing pump
Shape	Cylinder
Barrel length	2.1-10ft
Pump OD	28 mm to 108 mm
Tensile strength	90000-173339 psi
Yield strength	60000-115000 psi
Barrel	Chrome plating technology Nickel carbide plating technology
Plunger coating	Spray metal or chrome plated surface
Valve seat and ball	Stainless steel, tungsten carbide and stellite

Features

1. Can't be used in high temperature enviroment.

2. Production cost is lower than the mechanical seating type
3.Top seating suitable for sandy wells; bottom seating suitable for deep wells.

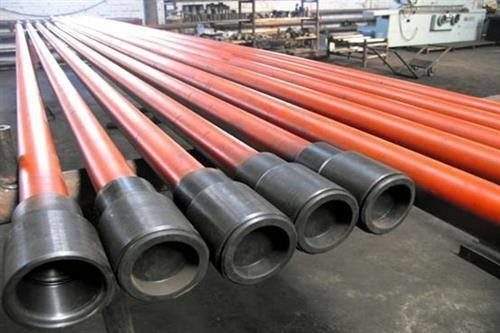

Top And Bottom Cup Seating Sucker Rod Pump Stationary Barrel 0
