Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API, ISO, QHSE
Model Number: Sucker rod pump
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard exported packing
Delivery Time: 10~15 workdays
Payment Terms: L/C, D/P, T/T, Western Union, D/A
Supply Ability: 1000 SETS/MONTH
Seating Type 1: |
Mechanical Seating |
Seating Type 2: |
Cup Seating |
Barrel Type 1: |
Heavy Wall Barrel |
Barrel Type 2: |
Thin Wall Barrel |
Barrel Material: |
Carbon Steel |
Plunger Material: |
Carbon Steel |
Application: |
Artificial Lift Pumping |
Pump Type: |
Sucker Rod Pump |
Seating Type 1: |
Mechanical Seating |
Seating Type 2: |
Cup Seating |
Barrel Type 1: |
Heavy Wall Barrel |
Barrel Type 2: |
Thin Wall Barrel |
Barrel Material: |
Carbon Steel |
Plunger Material: |
Carbon Steel |
Application: |
Artificial Lift Pumping |
Pump Type: |
Sucker Rod Pump |

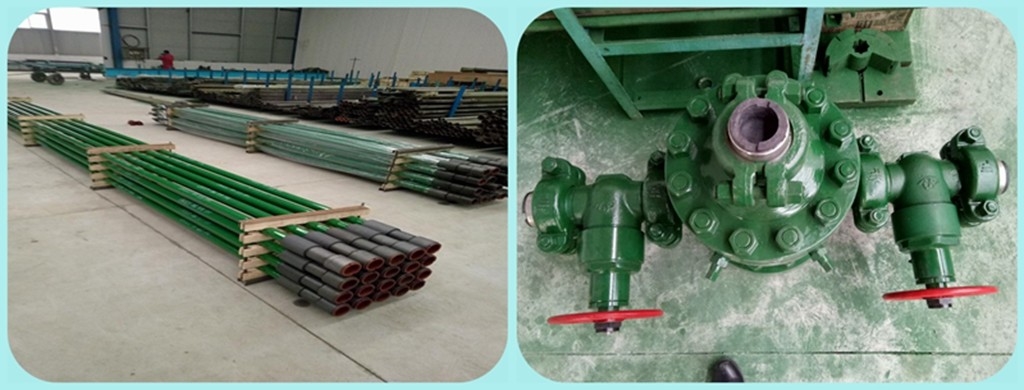

Mechanical Seating or Cup Seating Sucker Rod Pump
Mechanical seating or cup seating sucker rod pump description
Rod pump should be installed inside the tubing with the sucker rod.The rod pump is connected to sucker rod after being assemblied on the surface then it is pulled down to the well bottom through the tubing. It is not necessary to pull the tubing out of the well when checking the pump, which can make the operation easier and quicker.
According to seating mode, the rod pump can be divided into two types: cup hold-down pump and mechanical hold-down pump.
Sucker rod pumps of Puyang Zhongshi Group are categorized according to the API 11AX pump designation.
API-RHAC, Rod, Stationary Heavy Wall Barrel, Cup Top Anchor Pump
API-RHBM, Rod, Stationary Heavy Wall Barrel, Mechanical Bottom Anchor Pump
API-RHBC, Rod, Stationary Heavy Wall Barrel, Cup Bottom Anchor Pump
API-RWAM, Rod, Stationary Thin Wall Barrel, Mechanical Top Anchor Pump
API-RWAC, Rod, Stationary Thin Wall Barrel, Cup Top Anchor Pump
API-RWBM, Rod, Stationary Thin Wall Barrel, Mechanical Bottom Anchor Pump
RW searies technical data:
| Specification | Pump OD |
Barrel length (ft) |
Plunger length (ft) |
Stroke length (ft) |
Extension length (ft) |
Tubing size EUE/NUE |
Sucker rod size |
| 20-125RWAM | Ø31.75 |
2.1-10 |
0.3-8 |
1.2-9 |
/ |
2-3/8” | 5/8” 3/4” |
| 20-125RWAC | |||||||
| 20-125RWBM | |||||||
| 20-125RWBC | |||||||
| 20-150RWAM | Ø38.10 | ||||||
| 20-150RWAC | |||||||
| 20-150RWBM | |||||||
| 20-150RWBC | |||||||
| 25-200RWAM | Ø50.80 | 2-7/8” | |||||
| 25-200RWAC | |||||||
| 25-200RWBM | |||||||
| 25-200RWBC | |||||||
| 30-250RWAM | Ø63.50 | 3-1/2” | |||||
| 30-250RWAC | |||||||
| 30-250RWBM |
Features
1. The operation of sucker rod pump is simple
2. Heavy wall barrel or thin wall barrel
3. Mechanical anchor is suitable for high temperature oil well
