Name: Carbon Steel Oilfield Hinged Bolted Casing Stop Collar
Brand: Puyang Zhongshi Group Co., Ltd.
SKU: 4 1/2"~20"
Price: 105.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Puyang Zhongshi Group

Certification: API,ISO,QHSE

Model Number: 4 1/2"~20"

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Wooden Box

Delivery Time: depends on quantity

Payment Terms: T/T, MoneyGram

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                Hinged Bolted Casing Stop Collar, Carbon Steel Casing Stop Collar


Product:	Oilfield Hinged Bolted Casing Stop Collar	Installation:	Hinged
Color:	As Required	Processing Type:	Casting
Application:	Oilfield Cementing Equipment	Material:	Carbon Steel

Product:	Oilfield Hinged Bolted Casing Stop Collar
Installation:	Hinged
Color:	As Required
Processing Type:	Casting
Application:	Oilfield Cementing Equipment
Material:	Carbon Steel

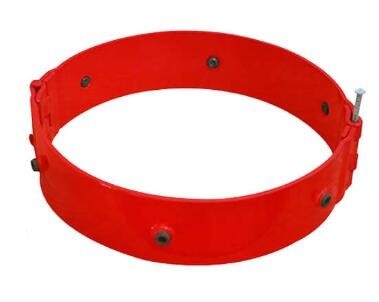

Carbon Steel Oilfield Hinged Bolted Casing Stop Collar

Oilfield Hinged Bolted Casing Stop Collar

It has higher holding forces than the centralizer starting force. It utilizes a nut-bolt assembly to fix together and draws the stop collar into a friction grip around the perimeter of the casing.

Oilfield Hinged Bolted Casing Stop Collar Features

Can be locked on the casing pipe without having to be slipped on at the end of the casing pipe.
The locking mechanism is at 180° of the hinge.
Cross-bolt design makes it efficient and user-friendly.
Economical stop collars. Suitable for subcritical annular tolerance.
It can be installed on any position on the casing.
It is used to limit the axial movement of centralizers and cement baskets Available in 4-1/2" to 20".

Oilfield Hinged Bolted Casing Stop Collar Specification

Specification (Inch)	ID (mm)	OD (mm)	Holding Force (KN)
5 1/ 2”	139	151	30
5”	126	138	24
4 1/ 2”	114	126	24
13 3/ 8”	338	350	40
10 3/ 4”	272	284	40
9 5/ 8”	245	257	40
8 1/ 8”	206	218	40
7 5/ 8”	193	285	30
7”	177	189	30
