Product Details
Place of Origin: China
Brand Name: Puyang Zhongshi Group
Certification: API,ISO,QHSE
Model Number: 4 1/2"~20"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: depends on quantity
Payment Terms: T/T, MoneyGram
Product: |
Oilfield Latch-on Stop Collar With Set Screws |
Color: |
Red Or As Required |
Type: |
Latch-on |
Feature: |
Welded |
Material: |
Steel |
Application: |
Oilfield Cementing Equipment |
Product: |
Oilfield Latch-on Stop Collar With Set Screws |
Color: |
Red Or As Required |
Type: |
Latch-on |
Feature: |
Welded |
Material: |
Steel |
Application: |
Oilfield Cementing Equipment |

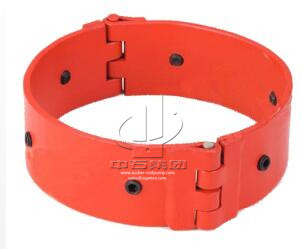

Oilfield Latch-On Stop Collar With Set Screws
Two pieces and hinged at the two ends making it 180 degree apart..The gripping force is applied
by one of the row of SetScrew which tightens the collar to the casing firmly,which can be fastened
on to the casing pipe and much easy to install.
|
Specification (Inch) |
ID (mm) |
OD (mm) |
Holding Force (KN) |
| 5 1/ 2” | 139 | 151 | 30 |
| 5” | 126 | 138 | 24 |
| 4 1/ 2” | 114 | 126 | 24 |
| 13 3/ 8” | 338 | 350 | 40 |
| 10 3/ 4” | 272 | 284 | 40 |
| 9 5/ 8” | 245 | 257 | 40 |
| 8 1/ 8” | 206 | 218 | 40 |
| 7 5/ 8” | 193 | 285 | 30 |
| 7” | 177 | 189 | 30 |
