Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API, ISO, QHSE
Model Number: RWBM
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard exported packing
Delivery Time: 10~15 workdays
Payment Terms: L/C, D/P, T/T, Western Union, D/A
Supply Ability: 1000 SETS/MONTH
Rod Pump Type: |
Thin Wall Pump |
Anchor Location: |
Top Or Bottom |
Anchor Type: |
Mechanical Or Cup |
Barrel Type: |
Thin Walled Barrel |
Barrel Material: |
Carbon Steel In Usual |
Application: |
Oil Production |
Rod Pump Type: |
Thin Wall Pump |
Anchor Location: |
Top Or Bottom |
Anchor Type: |
Mechanical Or Cup |
Barrel Type: |
Thin Walled Barrel |
Barrel Material: |
Carbon Steel In Usual |
Application: |
Oil Production |

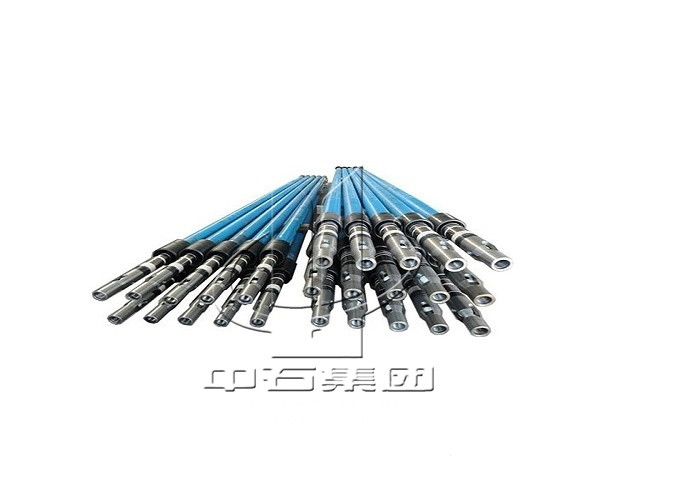

API Suker Rod Pump Oil Production With Chromium Molybdenum Alloy Steel
Thin walled sucker rod pump description
Thin walled sucker rod pump is RW series, the models are listed as below:
Specification
1. Type of barrel: chrome plated or carbonitrided surface
2. Type of plunger: metal spray or chrome plated surface
3. Valve ball and seat materials: stainless steel and tungsten carbide
4. Pump designation:
1) RHAM: Stationary Heavy Wall Barrel, Top Anchor, Mechanic Seating, Rod Pump
2) RHBM: Stationary Heavy Wall Barrel, Bottom Anchor, Mechanic Seating, Rod Pump
3) RHAC: Stationary Heavy Wall Barrel, Top Anchor, Cup Seating, Rod Pump
4) RHBC: Stationary Heavy Wall Barrel, Bottom Anchor, Cup Seating, Rod Pump
5) RHT: Traveling Heavy Wall Barrel, Bottom Anchor, Rod Pump
6) RWA: Stationary Thin Wall Barrel, Top Anchor, Rod Pump
7) RWB: Stationary Thin Wall Barrel, Bottom Anchor, Rod Pump
8) RWT: Traveling Thin Wall Barrel, Bottom Anchor, Rod Pump
9) RSA: Stationary Thin Wall Barrel, Top Anchor, Soft-packed Plunger, Rod Pump
10) RSB: Stationary Thin Wall Barrel, Bottom Anchor, Soft-packed Plunger, Rod Pump
11) THM: Heavy Wall Barrel, Mechanic Seating, Tubing Pump
12) THC: Heavy Wall Barrel, Cup Seating, Tubing Pump
If the sucker rod pump appeared quality problem, need not put forward the tubing string, only need put the whole pump forward well through the sucker rod string together , operation is simple.So the life span of tubing can be prolonged for decreasing the times of the thread of the tubingbeing turned on and off and the time of the workover. The rod pump can be classified into two types of mechanical seating and cup seating.
Thin wall pump(RWBM) parameter data:
RWBM specification |
Pump diameter (in) | Barrel length (ft) | Stroke length (ft) | Extension length (ft) | Tubing size EUE(in) |
20-125RWBM | Ø31.75 | 2.1-10.4 | 1.2-9.0 | / | 2-3/8” |
20-150RWBM | Ø38.10 | 2-3/8” | |||
25-200RWBM | Ø50.80 | 2-7/8” | |||
30-250RWBM | Ø63.50 | 3-1/2” |
Packing Pictures
