API Carbon Steel Polished Oilfield Sucker Rods Environmental Protection

Product Details

Place of Origin: China

Brand Name: Zhongshi

Certification: API ,ISO ,QHSE

Model Number: sucker rod

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: exported packing

Delivery Time: 2weeks

Payment Terms: T/T

Supply Ability: 1000pcs

Get Best Price
High Light:

Carbon Steel Oil Field Sucker Rod

,

API Polished Oilfield Sucker Rods

,

API 11B Oil Field Sucker Rod

Product Name:
Alloy Steel Sucker Rod
Grade:
D,KD,HY,K,HL
Standard:
API 11B
Size:
3/4",1",5/8"-1-1/8"
Length:
25-30ft
Package:
Bundle As Per API 11B Standard
Product Name:
Alloy Steel Sucker Rod
Grade:
D,KD,HY,K,HL
Standard:
API 11B
Size:
3/4",1",5/8"-1-1/8"
Length:
25-30ft
Package:
Bundle As Per API 11B Standard

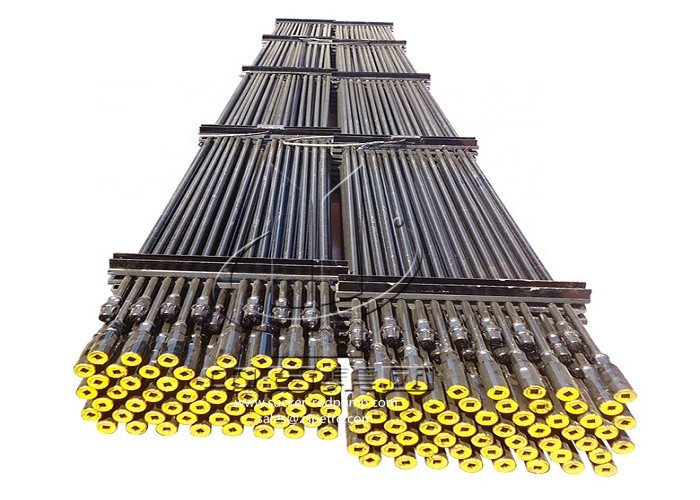

API Carbon Steel Polished Oilfield Sucker Rods Environmental Protection

API Carbon Steel Polished Oilfield Sucker Rods Environmental Protection



Product Description:



Sucker rod is manufactured according to API Spec 11B which mainly includes grade D and K. Grade H sucker rod is developed to suit for deep well and pcp pumps. Zhongshi alway provide the sucker rods which have the D ,K, KD , HL, HY type sucker rod.



Sucker Rod Manufacturing Process:



1. Inspection rod bars for any demage, fault and discontinuities.
2. Rod Bars are machine straightened and cold drawn to the required size.
3. The rod bar ends are hot forged according to API designed sizes
4. The rods are then heat treated over the full length
5. The rod is then again checked for straightness.

6. Rods are cleaned by shot-blasting to remove any scale and oxidation.
7. The forged ends are machined on C. N. C. Lathe machines as per API dimensions and checked with API approved gauges.
8. Packaging the sucker rods and carefully palletized the rods in bundles for safe transport and handling.
9. Rods are coated with rust inhibitors.
10. Storage The sucker rods or shipping out to clients



Sucker Rod Specification:



Size

in (mm)

Rod Body diameter in (mm) diameter of ext. thread
in (mm)
Full size Coupling OD mm (in)

Coupling

OD mm (in)

Wrench square W*L mm (in) Length series m (ft)
5/8 (16) 5/8 (15.88) 15/16 (23.81) 38.10(1.5) 31.8 (1.25) 22.2×31.8 (7/8×1-1/4) 7.62 (25)
3/4 (19) 3/4 (19.05) 1-1/16(26.99) 41.28(1.625) 38.1 (1.5) 25.4×31.8 (1×1-1/4) 9.14 (30)
7/8 (22) 7/8 (22.23) 1-3/16 (30.16) 46.0(1.812) 41.3 (1.625) 25.4×31.8 (1×1-1/4) 0.6 (2), 1 (3)
1 (25) 1 (25.40) 1-3/8 (34.93) 55.6(2.187) 50.8 (2) 33.3×38.1(1-5/16×1-1/2) 2 (6), 3 (10)
1-1/8 (28) 1-1/8 (28.58) 1-9/16 (39.7) 60.33(2.375) 57.2 (2.25) 38.1×41.3 (1-1/2×1-5/8)


Mechanical Properties of Sucker Rods:



Grade

Min Yield strength 0.2%

offset M Pa (psi)

Tensile strength
M Pa (psi)

Elongation

δ%

Reduction of area ψ%
K 414 (60, 000) 621-793(90, 000-115, 000) ≥13 ≥60
C 414 (60, 000) 621-793(90, 000-115, 000) ≥13 ≥50
D 586 (84, 970) 793-965 (114, 985-139, 925) ≥10 ≥50
KD 590(85, 000) 793-965 (114, 985-139, 925) ≥10 ≥50
HL 795(115,000) 965-1,195(140,000-173,339) ≥10 ≥45
HY 540 (78, 300) 965-1,195(140,000-173,339) ≥42 ≥224
