Product Details:
Payment & Shipping Terms:
|
Features: | High Efficiency | Product: | Valve Ball And Seat For Subsurface Sucker Rod Pump |
---|---|---|---|
Material: | High Manganese Steel | Processing Type: | Casting |
Warranty: | 12 Months | Application: | Oil Field |
High Light: | Oilfield Pump Valve Ball And Seat,Oilfield Rod Pump Accessries,Rod Pump Valve Ball And Seat |

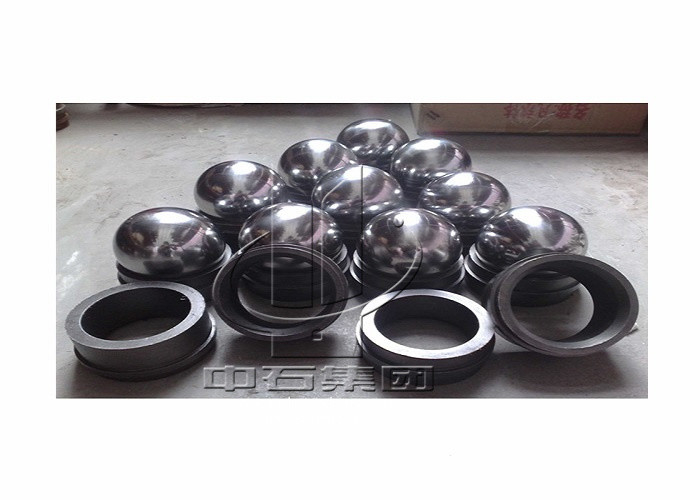

Sucker Rod Pump Accessries Stellite Alloy Valve Ball AndValve Seat Oilfield Pump Parts
Product Description
The valve balls and valve seats are main components and parts of the sucker rod pump.
1. API Spec 11A
2. Strong corrosion resistance
3. Excellent mechanical property
Features
1. Hardness and resistance against wear.
2. High compressive strength.
3. With the ability to withstand shock and also impact.
Technical Specifications
Size of ball(mm) | Size of ball(mm) | Size of ball seat(mm) | Size of ball seat(mm) |
Ø19.05 | Ø19.05 | Ø13* Ø15*12 | Ø23.32* Ø15*12.7 |
Ø22.2 | Ø23.83 | Ø28* Ø18*12 | Ø29.67* Ø18.2*12.7 |
Ø25 | Ø28.58 | Ø28* Ø19*12 | Ø35.26* Ø22.2*12.7 |
Ø25.4 | Ø34.93 | Ø30* Ø18*12 | Ø43.69* Ø27.4*12.7 |
Ø29 | Ø42.88 | Ø34* Ø23*12 | Ø51.05* Ø33.6*12.7 |
Ø32 | Ø50.8 | Ø47* Ø27*12.7 | Ø67* Ø39.9*19.1 |
Ø35 | Ø57.15 | Ø44* Ø27*15 | Ø67* Ø44.8*19.1 |
Ø38 | Ø63.5 | Ø55* Ø30*20 | Ø78.4* Ø49.8*19.1 |
Ø45 | Ø69.85 | Ø55* Ø36*15 | Ø91.1* Ø54.8*19.1 |
Ø50 | Ø74.61 | Ø65* Ø40*20 | Ø88* Ø63.5*20 |
Ø50.8 | Ø67* Ø41*15 | ||
Ø55 | Ø67* Ø45*20 | ||
Ø60.325 | Ø77* Ø50.5*20 | ||
Other size as client’s request |
