Product Details
Place of Origin: China
Brand Name: zhongshi
Certification: API 5CT ,ISO ,QHSE
Model Number: pup joint
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: exported packing
Delivery Time: 2 weeks
Payment Terms: T/T
Material: |
Alloy Steel,J55 K55 N80 L80 P110 |
Product Name: |
API 5ct Casing And Tubing Pup Joint |
Standard: |
API, ISO,QHSE |
Thread: |
EUE , NUE |
Thickness: |
2.87-30mm,4.24--20.62mm |
Size: |
2-3/8-----3-1/2 |
Material: |
Alloy Steel,J55 K55 N80 L80 P110 |
Product Name: |
API 5ct Casing And Tubing Pup Joint |
Standard: |
API, ISO,QHSE |
Thread: |
EUE , NUE |
Thickness: |
2.87-30mm,4.24--20.62mm |
Size: |
2-3/8-----3-1/2 |

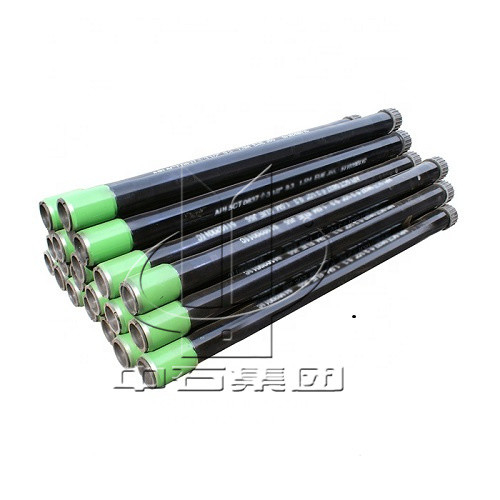

API 73*5.51mm 1000mm EU J55 Pup Joint Heavy Wall Alloy Steel API Perforated Tubing Pup Joint
Product Description:
Pup Joints are used to adjust the height of full length tubing or casing strings. They are also used to adjust the depth of downhole tools. Pup Joint sets are available in: Integral Premium Thread Box-by-Pin Pin-by-Pin with couplings boxed separately Pin-by-Pin with couplings hand tight Pin-by-Coupling Box Flush joint connections
Features:
Outside Diameter:0.75 to 4.5 inches nominal size OD
Weight:Standard or Heavy Wall
Lengths:2,3,4,6,8,10 12 ft (with other lengths available upon request)
Grades:J-55, N80-1, N80-Q, L-80, P-110
Connections:EUE, NUE, Buttress and Premium Connections of leading manufacturers available.
Casing Pup Joint Specifications:
Outside Diameter:4.5 to 20 inches nominal size OD
Weight:Standard or Heavy Wall
Lengths:Customized lengths available from 2 to 20 ft.
Grades:J-55, N80-1, N80-Q, L-80, P-110
Connections:STC, LC and BC and Premium Connections of leading manufacturers available.
Technical Parameter:
| Diameters: | 1.9" through 4.5" nominal O.D. |
| Weights: | Standard or Heavy Wall |
| Lengths: | 2, 3, 4, 6, 8, 10, 12 ft. Standard (Other lengths available upon request) |
| Grades: | J-55, N-80, N-80 Q & T, L-80, P-110 |
| Connections: | EUE, NUE, Buttress |
|
Size |
Type of Thread |
O.D*L (mm) |
Weight(kg) |
|---|---|---|---|
| 2-3/8" | NUE | 73.02*107.95 | 1.28 |
| 2-3/8" | EUE | 77.80*132.82 | 1.55 |
| 2-7/8" | NUE | 88.90*130.18 | 2.34 |
| 2-7/8" | EUE | 93.17*133.35 | 2.40 |
| 3-1/2" | NUE | 107.95*142.88 | 3.71 |
| 3-1/2" | EUE | 114.30*146.05 | 4.10 |
| 4" | NUE | 120.65*146.05 | 4.35 |
| 4" | EUE | 127.00*152.40 | 4.82 |
| 4-1/2" | NUE | 132.08*155.58 | 4.89 |
| 4-1/2" | EUE | 141.30*158.75 | 6.05 |
