Product Details
Place of Origin: China
Brand Name: Puyang Zhongshi Group
Certification: API,ISO,QHSE
Model Number: 4 1/2"~36"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: depends on quantity
Payment Terms: T/T, MoneyGram
Product: |
Oilfield Non Rotating Casing Float Collar And Float Shoe |
Type: |
Non-rotating |
Size: |
4 1/2''--20" |
Material: |
P-110, K55, J55, N80,L80 |
Thread: |
API Thread Or As Required |
Service: |
OEM Service |
Product: |
Oilfield Non Rotating Casing Float Collar And Float Shoe |
Type: |
Non-rotating |
Size: |
4 1/2''--20" |
Material: |
P-110, K55, J55, N80,L80 |
Thread: |
API Thread Or As Required |
Service: |
OEM Service |

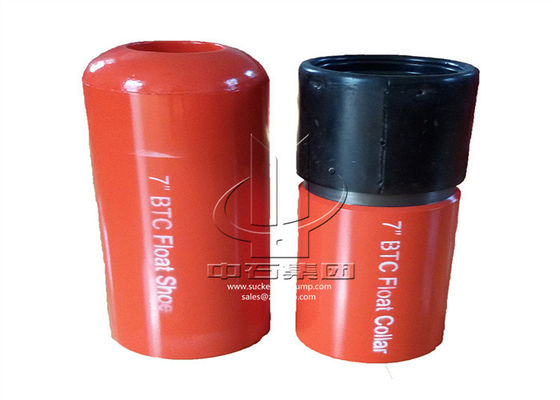

Non Rotating Float Collar Downhole Cementing Tool Casing Pipe Float Shoe
Float collar is installed on the casing and up the float shoe. Like float shoe, it also provide buoyancy to the casing string when it’s lowered, reducing the load on the drilling rig. A build-in check valve provides buoyancy to the casing string also prevents cement from re-entering the casing after it’s displaced. It’s a receptacle to cement plug.
1. All inner parts are made of easily drillable aluminum alloy.
2. The device can be connected directly to the casing of the same type.
3. Reliable back-pressure leak proof structure, enable grout or slurry flow with less resistance.
4. Valve seat and valve disk can effectively prevent grout from flowing back.
5. Non-rotating landing plate is available on request.
6. Either PDC or rock bit drillable.
| Specification(in) | O.D.(mm) | Total length(mm) | I.D. (mm) | Min.Dia. (mm) | Conn Type | Affordable strength of back-pressure(Mpa) | |
| Float Collar | 5 | 141.3 | 500 | 110 | 50 | 5 BCSG | 35 |
| 5 1/2 | 153.67 | 530 | 112 | 55 | 5 1/2BCSG | 35 | |
| 7 | 194.46 | 586 | 162.5 | 77 | 7 BCSG | 35 | |
| 9 5/8 | 270 | 720 | 225 | 77 | 9 5/8 BCSG | 35 | |
| 13 3/8 | 365 | 720 | 319 | 77 | 133/8 BCSG | 35 | |
| 20 | 533.4 | 720 | 475 | 77 | 20 BCSG | 35 | |
| Float Shoe | 5 | 140.3 | 495 | 110 | 50 | 5 BCSG | 35 |
| 5 1/2 | 153.67 | 514 | 122 | 55 | 5 1/2 BCSG | 35 | |
| 7 | 194.46 | 533 | 162.5 | 77 | 7 BCSG | 35 | |
| 9 5/8 | 269.88 | 550 | 225 | 77 | 9 5/8 BCSG | 35 | |
| 13 3/8 | 339.7 | 550 | 319 | 77 | 133/8 BCSG | 35 | |
| 20 | 534 | 652 | 475 | 77 | 20 BCSG | 35 | |
