Product Details
Place of Origin: China
Brand Name: Puyang Zhongshi Group
Certification: API,ISO,QHSE
Model Number: 4 1/2"~20"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: depends on quantity
Payment Terms: T/T, MoneyGram
Product: |
Oilfield Conventional Single Plug Cementing Head |
Steel Grade: |
J55,L80,N80,P110 |
Connection: |
Thread Connection Or Clamp |
Material: |
AISI 4145H Alloy Steel |
Working Pressure: |
3000~10000psi |
Application: |
Well Drilling Or Well Cementing |
Product: |
Oilfield Conventional Single Plug Cementing Head |
Steel Grade: |
J55,L80,N80,P110 |
Connection: |
Thread Connection Or Clamp |
Material: |
AISI 4145H Alloy Steel |
Working Pressure: |
3000~10000psi |
Application: |
Well Drilling Or Well Cementing |

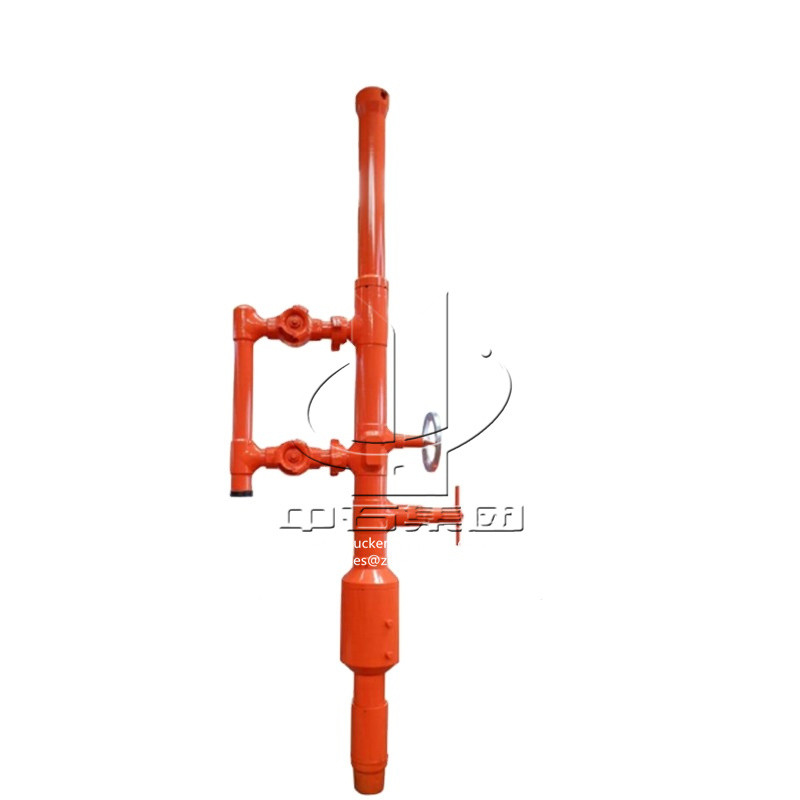

Oilfield Conventional Single Plug Cementing Head
Special tool for pumping slurry and releasing plug,the Single Plug cement head can be connected with casing.
| Type | 127 | 177.8 | 244.5 | 339.7 |
| (5″) | (7″) | (95/8″) | (133/8″) | |
| Max rated pressure(MPa) | 35 | 35 | 35 | 21 |
| Connecting Thread | BTC | BTC | BTC | BTC |
| Manifold | 2″1502 Union | 2″1502 Union | 2″1502 Union | 2″1502 Union |
| ID of main body(mm) | 113 | 160 | 225 | 320 |
| Length of top plug container(mm) | 270 | 270 | 290 | 375 |
| Length of bottom plug container(mm) | 270 | 270 | 290 | 375 |
| total length(mm) | 1686 | 1718 | 1993 | 2152 |
