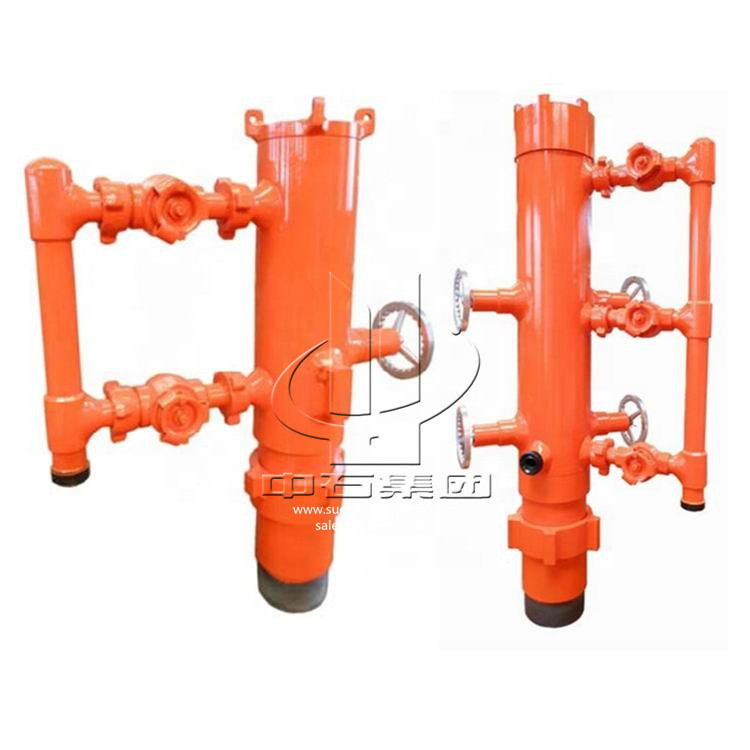

Conventional Oilfield Cementing Tools Double Plugs For Well Drilling

Product Details

Place of Origin: China

Brand Name: Puyang Zhongshi Group

Certification: API,ISO,QHSE

Model Number: 4 1/2"~20"

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Wooden Box

Delivery Time: depends on quantity

Payment Terms: T/T, MoneyGram

Get Best Price
High Light:

Well Drilling Oilfield Cementing Tools

,

Double Plugs Oilfield Cementing

,

Conventional Industrial Rubber Cement Heads

Product:
Conventional Double Plugs Cementing Head
Material:
Carbon Steel
Type:
Double Plug
Adapter:
Quick-latch Adapter
Manifold:
2″ Union
Application:
Well Drilling
Product:
Conventional Double Plugs Cementing Head
Material:
Carbon Steel
Type:
Double Plug
Adapter:
Quick-latch Adapter
Manifold:
2″ Union
Application:
Well Drilling
Conventional Oilfield Cementing Tools Double Plugs For Well Drilling

Conventional Double Plugs Cementing Head



Double plug of cementing head special tool for pumping slurry and releasing plug which can couple with two plugs simultaneously,

and makes the drilling fluid fill into casing in turn and quickly.


Conventional Double Plugs Cementing Head Features
  • Double balance pipe is developed.
  • Positive lever indicates plug releasing.
  • Main parts are made from AISI4145H alloy steel.
  • Top cover and union nut with large trapezoidial-threaded.
  • It makes the tool convenient to disassemble and carry.​
Conventional Double Plugs Cementing Head Specification

Type 127 177.8 244.5 339.7
(5″) (7″) (95/8″) (133/8″)
Max rated pressure(MPa) 35 35 35 21
Connecting Thread BTC BTC BTC BTC
Manifold 2″1502 Union 2″1502 Union 2″1502 Union 2″1502 Union
ID of main body(mm) 113 160 225 320
Length of top plug container(mm) 270 270 290 375
Length of bottom plug container(mm) 270 270 290 375
total length(mm) 1686 1718 1993 2152
