Product Details
Place of Origin: China
Brand Name: zhongshi
Certification: API 5CT ,ISO ,QHSE
Model Number: pup joint
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: exported packing
Delivery Time: 2 weeks
Payment Terms: T/T
Material: |
Alloy Steel,J55 K55 N80 L80 P110 |
Product Name: |
API 5ct Casing And Tubing Pup Joint |
Standard: |
API, ISO,QHSE |
Thread: |
EUE , NUE |
Thickness: |
2.87-30mm,4.24--20.62mm |
Size: |
2-3/8-----3-1/2 |
Material: |
Alloy Steel,J55 K55 N80 L80 P110 |
Product Name: |
API 5ct Casing And Tubing Pup Joint |
Standard: |
API, ISO,QHSE |
Thread: |
EUE , NUE |
Thickness: |
2.87-30mm,4.24--20.62mm |
Size: |
2-3/8-----3-1/2 |

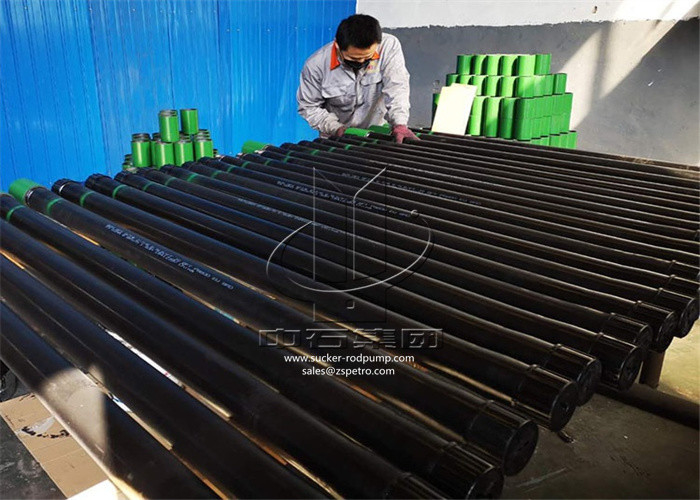

API Tubing & Casing Connection Tool Pup Joint With EUE Coupling
Product Description:
Pup Joints are used to adjust the height of full length tubing or casing strings. They are also used to adjust the depth of downhole tools. Pup Joint sets are available in: Integral Premium Thread Box x Pin with couplings boxed separately Pin-by-Pin with couplings hand tight Pin-y-Coupling Box Flush joint connections
Features:
Size |
Type of Thread |
O.D*L (mm) |
Weight(kg) |
---|---|---|---|
2-3/8" | NUE | 73.02*107.95 | 1.28 |
2-3/8" | EUE | 77.80*132.82 | 1.55 |
2-7/8" | NUE | 88.90*130.18 | 2.34 |
2-7/8" | EUE | 93.17*133.35 | 2.40 |
3-1/2" | NUE | 107.95*142.88 | 3.71 |
3-1/2" | EUE | 114.30*146.05 | 4.10 |
4" | NUE | 120.65*146.05 | 4.35 |
4" | EUE | 127.00*152.40 | 4.82 |
4-1/2" | NUE | 132.08*155.58 | 4.89 |
4-1/2" | EUE | 141.30*158.75 | 6.05 |
