API Spray Metal Sucker Rod Pumps For Oil Well Production

API Spray Metal Sucker Rod Pumps For Oil Well Production
API Spray Metal Sucker Rod Pumps For Oil Well Production

Large Image :  API Spray Metal Sucker Rod Pumps For Oil Well Production

Product Details:

Place of Origin: China
Brand Name: Zhongshi
Certification: API, ISO, QHSE
Model Number: Sucker rod pump

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard exported packing
Delivery Time: 10~15 workdays
Payment Terms: L/C, D/P, T/T, Western Union, D/A
Supply Ability: 1000 SETS/MONTH
Detailed Product Description
Pump Type: Sucker Rod Pump Barrel Coating: Chrome Plated In Usual
Anchor Type 1: Cup Anchor Anchor Type 2: Mechanical Anchor
Plunger Coating: Spray Metal Origin: China
High Light:

Sucker Oil Rod Pump

,

Spray Metal Oil Well Rod Pump

,

API Oilfield Sucker Rods

Normal Oil Well Production Use Sucker Rod Pumps



Oil production sucker rod pump description:



Pump barrel inner surface coating technology: chrome plated; nickel carbide

There is a wide range of plunger (or pump-bore) sizes standardized by the industry. The API pump-bore sizes that are currently available range from 1 1/16 to 3 3/4 in. in diameter. This 1 1/16-in. size has been added back in the latest edition of the standard. Additionally, a new barrel type has been accepted in the latest API Spec. 11AX. This is the "X-type" barrel. It has a thin-walled barrel configuration for threads on either end of the heavy-walled barrel and is available for metal plungers only. This type of pump does not require the extension couplings normally needed for heavy-walled barrel pumps. Thus, this pump reduces the burst or collapse concerns of the thin-walled extension couplings and allows deeper producing depths to be attained.



Features:

1. stationary barrel (heavy wall or thin wall)

2. Extra small clearance between the plunger and the inside wall of the barrel.



Sucker rod pump technical specifications:



API models mm(in)
Nominal OD
m(ft)Plunger
Length
Stroke m m3/d Pump
Constant
Tubing And
Thread
Sucker
Rod size
20-125TH 32(1.25) 1.2-1.8 (4-6) 0.6-7.3 1.14 27/8NU/EU ¾
20-125RHAC/M 32(1.25) 0.6-7.3 1.14 27/8NU/EU ¾
20-125RHBC/M 32(1.25) 0.6-7.3 1.14 27/8NU/EU ¾
20-125RHTC/M 32(1.25) 0.6-7.3 1.14 27/8NU/EU ¾
25-125TH 32(1.25) 0.6-7.3 1.14 27/8NU/EU ¾
25-150RHAC/M 38(1.50) 0.6-7.3 1.64 27/8NU/EU ¾
25-150RHBC/M 38(1.50) 0.6-7.3 1.64 27/8NU/EU ¾
25-150RHTC/M 38(1.50) 0.6-7.3 1.64 27/8NU/EU ¾
20-150TH 38(1.50) 0.6-7.3 1.64 27/8NU/EU ¾
25-150TH 38(1.50) 0.6-7.3 1.64 27/8NU/EU ¾
20-175TH 44(1.75) 0.6-7.3 2.24 27/8NU/EU ¾
25-175RHAC/M 44(1.75) 0.6-7.3 2.24 27/8 ¾
25-175RHBC/M 44(1.75) 0.6-7.3 2.24 27/8NU/EU ¾
25-175RHTC/M 44(1.75) 0.6-7.3 2.24 27/8NU/EU ¾
25-175TH 44(1.75) 0.6-7.3 2.24 27/8NU/EU ¾
25-225TH 57(2.25) 0.6-7.3 3.69 27/8NU/EU ¾
30-275TH 70(2.75) 0.6-7.3 5.50 3½NU/EU 7/8
30-225RHAC/M 57(2.25) 0.6-7.3 3.69 3½ NU/EU ¾
30-225RHBC/M 57(2.25) 0.6-7.3 3.69 3½ NU/EU ¾
30-225RHTC/M 57(2.25) 0.6-7.3 3.69 3½ NU/EU ¾
35-325TH 83(3.25) 0.6-7.3 7.70 4NU/EU 7/8
40-375TH 95(3.75) 0.6-7.3 10.26 4½NU/EU 1

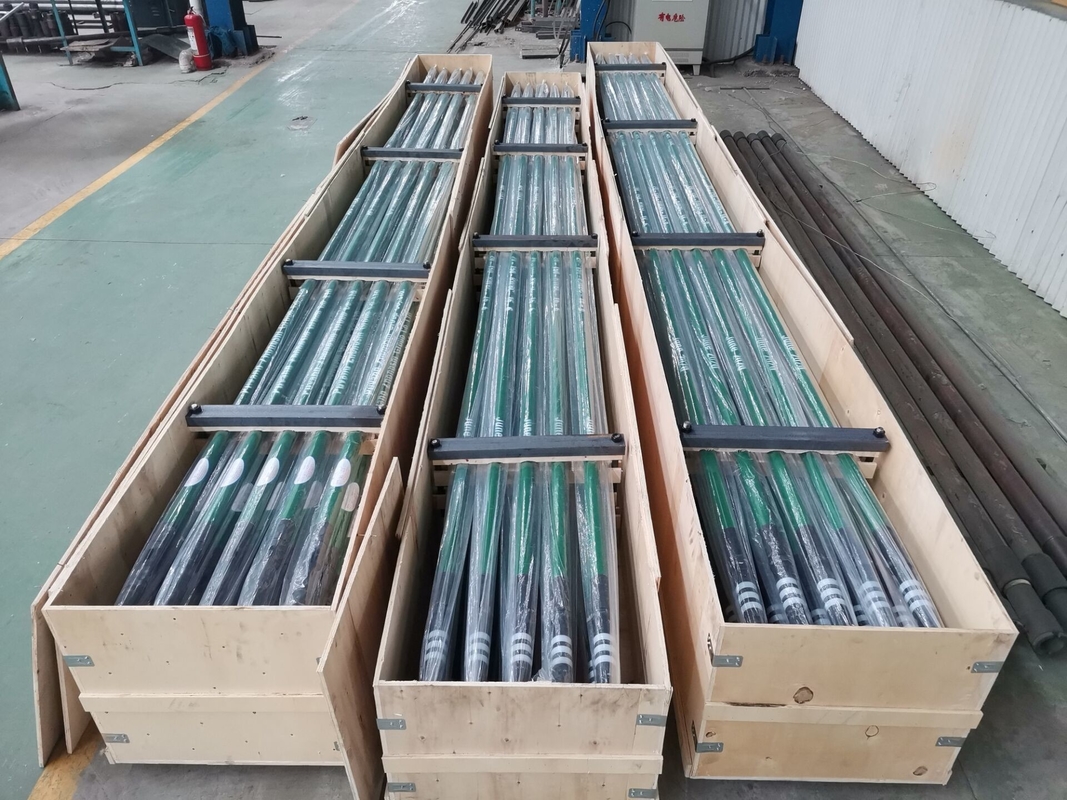

Packing photo:



API Spray Metal Sucker Rod Pumps For Oil Well Production 0
