Product Details
Place of Origin: Puyang city , Henan province ,China
Brand Name: PUYANGZHONGSHI
Certification: API 11AX-0061
Model Number: API or customized
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: USD 400-800$/pcs
Packaging Details: wooden cases
Delivery Time: 20-30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100pcs,one month
Material: |
AISI 4130 |
Machine Type: |
Drilling Equipment |
Use: |
Oil Drilling |
Color: |
Blue Or Green |
Type: |
Oilfield Rod Pump |
Size: |
25-175 |
Material: |
AISI 4130 |
Machine Type: |
Drilling Equipment |
Use: |
Oil Drilling |
Color: |
Blue Or Green |
Type: |
Oilfield Rod Pump |
Size: |
25-175 |

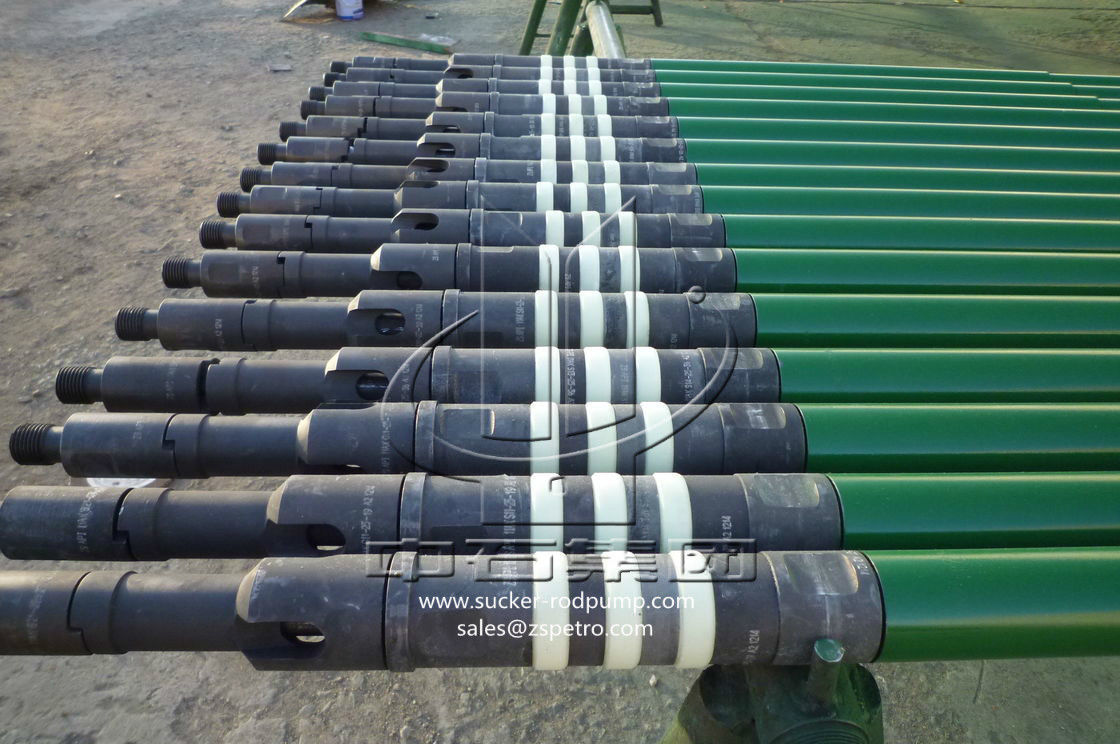

The rod pump is connected to sucker rod after being assemblied on the surface then it is pulled down to the well bottom through the tubing. Thus it is convenient for the inspection and workover because they can be pulled up and down through the tubing and suitable for deeper well. The life span of tubing can be prolonged for decreasing the times of the thread of the tubing being turned on and off and the time of the workover. The rod pump can be classified into two types of mechanical seating and cup seating. Also it is divided into three types as RHA (stationary heavy well barrel top anchor rod pump), RHB (stationary heavy well barrel bottom anchor rod pump) and RHT (travelling heavy well barrel bottom anchor rod pump).
Product Models and Specifications:
| Model | mm(in) Nominal Dia. |
m(ft)Plunger Length |
Stroke m | m3/d Pump Constant |
Tubing And Thread |
In Sucker Rod |
| 20-125TH | 32(1.25) | 1.2-1.8 (4-6) | 0.6-7.3 | 1.14 | 27/8NU/EU | ¾ |
| 20-125RHAC/M | 32(1.25) | 0.6-7.3 | 1.14 | 27/8NU/EU | ¾ | |
| 20-125RHBC/M | 32(1.25) | 0.6-7.3 | 1.14 | 27/8NU/EU | ¾ | |
| 20-125RHTC/M | 32(1.25) | 0.6-7.3 | 1.14 | 27/8NU/EU | ¾ | |
| 25-125TH | 32(1.25) | 0.6-7.3 | 1.14 | 27/8NU/EU | ¾ | |
| 25-150RHAC/M | 38(1.50) | 0.6-7.3 | 1.64 | 27/8NU/EU | ¾ | |
| 25-150RHBC/M | 38(1.50) | 0.6-7.3 | 1.64 | 27/8NU/EU | ¾ | |
| 25-150RHTC/M | 38(1.50) | 0.6-7.3 | 1.64 | 27/8NU/EU | ¾ | |
| 20-150TH | 38(1.50) | 0.6-7.3 | 1.64 | 27/8NU/EU | ¾ | |
| 25-150TH | 38(1.50) | 0.6-7.3 | 1.64 | 27/8NU/EU | ¾ | |
| 20-175TH | 44(1.75) | 0.6-7.3 | 2.24 | 27/8NU/EU | ¾ | |
| 25-175RHA/M | 44(1.75) | 0.6-7.3 | 2.24 | 27/8 | ¾ | |
| 25-175RHB/M | 44(1.75) | 0.6-7.3 | 2.24 | 27/8NU/EU | ¾ | |
| 25-175RHT/M | 44(1.75) | 0.6-7.3 | 2.24 | 27/8NU/EU | ¾ | |
| 25-175TH | 44(1.75) | 0.6-7.3 | 2.24 | 27/8NU/EU | ¾ | |
| 25-225TH | 57(2.25) | 0.6-7.3 | 3.69 | 27/8NU/EU | ¾ | |
| 30-275TH | 70(2.75) | 0.6-7.3 | 5.50 | 3½NU/EU | 7/8 | |
| 30-225RHC/M | 57(2.25) | 0.6-7.3 | 3.69 | 3½ NU/EU | ¾ | |
| 30-225RHC/M | 57(2.25) | 0.6-7.3 | 3.69 | 3½ NU/EU | ¾ | |
| 30-225RHC/M | 57(2.25) | 0.6-7.3 | 3.69 | 3½ NU/EU | ¾ | |
| 35-325TH | 83(3.25) | 0.6-7.3 | 7.70 | 4NU/EU | 7/8 | |
| 40-375TH | 95(3.75) | 0.6-7.3 | 10.26 | 4½NU/EU | 1 |
Puyang Zhongshi Group co., Ltd. was founded in 1996, which is the restructured enterprise
of Central Plains oilfield branch company of SINOPEC . The company registered capital is
60.83 million yuan, with annual output value 200 million yuan, 580 employees, including
more than 160 technical and administrative staff . Oil machinery is our main products, the
leading products include pumping unit, subsurface sucker rod pump, wellhead (Christmas
Tree), pressure vessels, drilling solid control series products and cementing accessories. We
had attained ISO 9001 in 1998 and API Certificates in 2002 .
