Product Details
Place of Origin: China
Brand Name: Puyang Zhongshi Group
Certification: API,ISO,QHSE
Model Number: 4 1/2"~20"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: depends on quantity
Payment Terms: T/T, MoneyGram
Product: |
Oilfield Drilling Non Rotating Wiper Cementing Plugs |
Material: |
NBR |
Type: |
Non-rotating |
Feature: |
High Performance |
Temperature: |
-30℃ To 150℃ |
Working Pressure: |
≥15MP |
Product: |
Oilfield Drilling Non Rotating Wiper Cementing Plugs |
Material: |
NBR |
Type: |
Non-rotating |
Feature: |
High Performance |
Temperature: |
-30℃ To 150℃ |
Working Pressure: |
≥15MP |

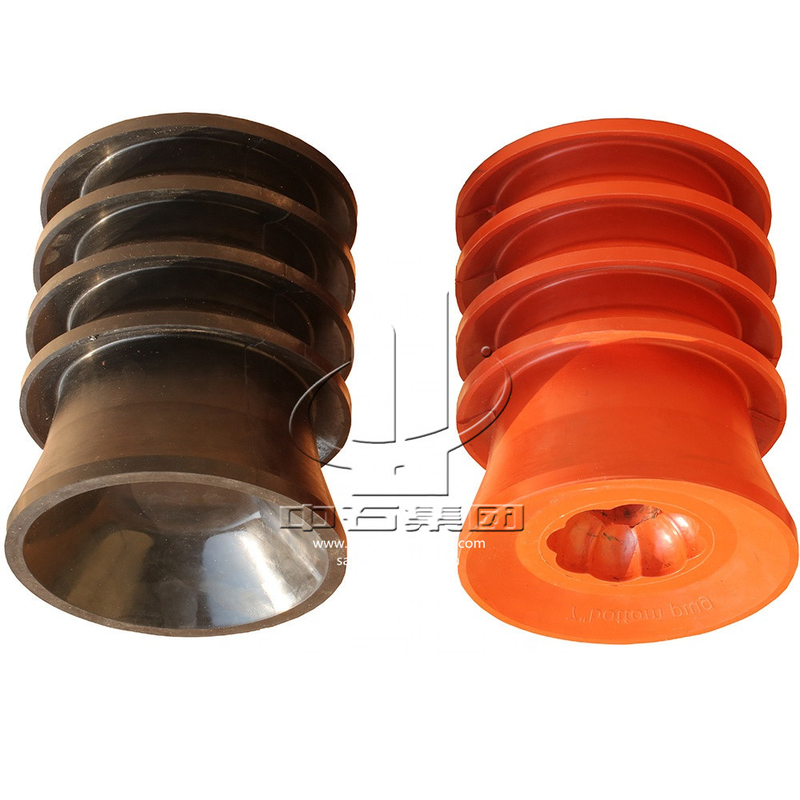

Oilfield Drilling Non Rotating Wiper Cementing Plugs
These series of cementing plug have reinforced locking teeth built into the plugs, which lock together between the plugs and the float equipment to eliminate rotation of the plug during drill out.
| Casing | Casing Weight Range | Wiper Fin O.D | Working | Working | Burst | Hardness | ||
| Size(in) | mm | in | mm | in | Temperature | Pressure | Pressure | |
| 4 1/2" | 14.14-17.26 | 9.50-11.60 | 110 | 4.331 | -30℃ to 150℃ | ≥15MP | 1MP-2MP | 75-95 |
| 5" | 17.11-35.86 | 11.50-24.10 | 122 | 4.803 | ||||
| 5 1/2" | 20.83-39.88 | 14.00-26.80 | 135 | 5.315 | ||||
| 7" | 25.30-56.55 | 17.00-38.00 | 170 | 6.693 | ||||
| 7 5/8" | 35.72-63.69 | 24.00-42.00 | 185 | 7.283 | ||||
| 9 5/8" | 53.57-79.62 | 36.00-53.50 | 235 | 9.252 | ||||
| 13 3/8" | 71.43-107.15 | 48.00-72.00 | 333 | 13.11 | -30℃ to 150℃ | ≥10MP | ||
| 20" | 139.89-197.93 | 94.00-133.00 | 498 | 19.606 | ||||
