Product Details
Place of Origin: China
Brand Name: Puyang Zhongshi Group
Certification: API,ISO,QHSE
Model Number: 4 1/2"~20"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: depends on quantity
Payment Terms: T/T, MoneyGram
Product: |
OilWell PDC Drillable Cementing Wiper Plug |
Material: |
NBR |
Size: |
2-3/8“ Up To 20” |
Core Inside: |
Aluminum Inside |
Temperature: |
-30℃ To 150℃ |
Working Pressure: |
≥15MP |
Product: |
OilWell PDC Drillable Cementing Wiper Plug |
Material: |
NBR |
Size: |
2-3/8“ Up To 20” |
Core Inside: |
Aluminum Inside |
Temperature: |
-30℃ To 150℃ |
Working Pressure: |
≥15MP |

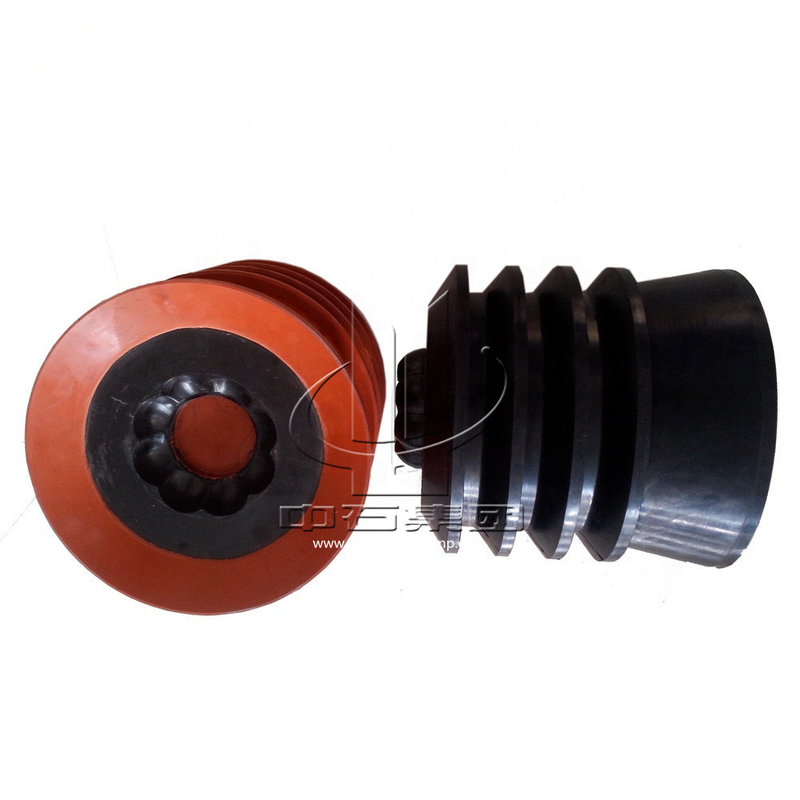

OilWell PDC Drillable Cementing Wiper Plug
Top plug and bottom plug two types are typically used on a cementing operation. It is manufactured by graded rubber that is fused upon a composite or Aluminum core.
These plugs are completely PDC drillable.
Plug can be ordered for higher operating temperature and operation in either synthetic or mud fluids
The top plug has a solid body that provides positive indication of contact with the landing collar
|
Casing size (in) |
casing weight range | Wiper Fin O.D | ||
| mm | in | mm | in | |
| 4 1/2" | 14.14-17.26 | 9.50-11.60 | 110 | 4.331 |
| 5" | 17.11-35.86 | 11.50-24.10 | 122 | 4.803 |
| 5 1/2" | 20.83-39.88 | 14.00-26.80 | 135 | 5.315 |
| 7" | 25.30-56.55 | 17.00-38.00 | 170 | 6.693 |
| 7 5/8 | 35.72-63.69 | 24.00-42.00 | 185 | 7.283 |
| 9 5/8 | ||||
| 9 5/8" | 53.57-79.62 | 36.00-53.50 | 235 | 9.252 |
| 10 3/4" | 60.27-97.77 | 40.50-65.70 | 260 | 10.236 |
| 13 3/8" | 71.43-107.15 | 48.00-72.00 | 333 | 13.11 |
| 20" | 139.89-197.93 | 94.00-133.00 | 498 | 19.606 |
