Product Details
Place of Origin: China
Brand Name: Puyang Zhongshi Group
Certification: API,ISO,QHSE
Model Number: 4 1/2"~20"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: depends on quantity
Payment Terms: T/T, MoneyGram
Product: |
Operating Rage Of Temperature With Aluminum Core Is Up To 200 Degree Fahrenheit. |
Thread: |
API Or As Required |
Feature: |
PDC Drillable |
Industry: |
Energy & Mining |
Temperature: |
-30℃ To 150℃ |
Use: |
Oil Drilling Rigs, Well Drilling |
Product: |
Operating Rage Of Temperature With Aluminum Core Is Up To 200 Degree Fahrenheit. |
Thread: |
API Or As Required |
Feature: |
PDC Drillable |
Industry: |
Energy & Mining |
Temperature: |
-30℃ To 150℃ |
Use: |
Oil Drilling Rigs, Well Drilling |

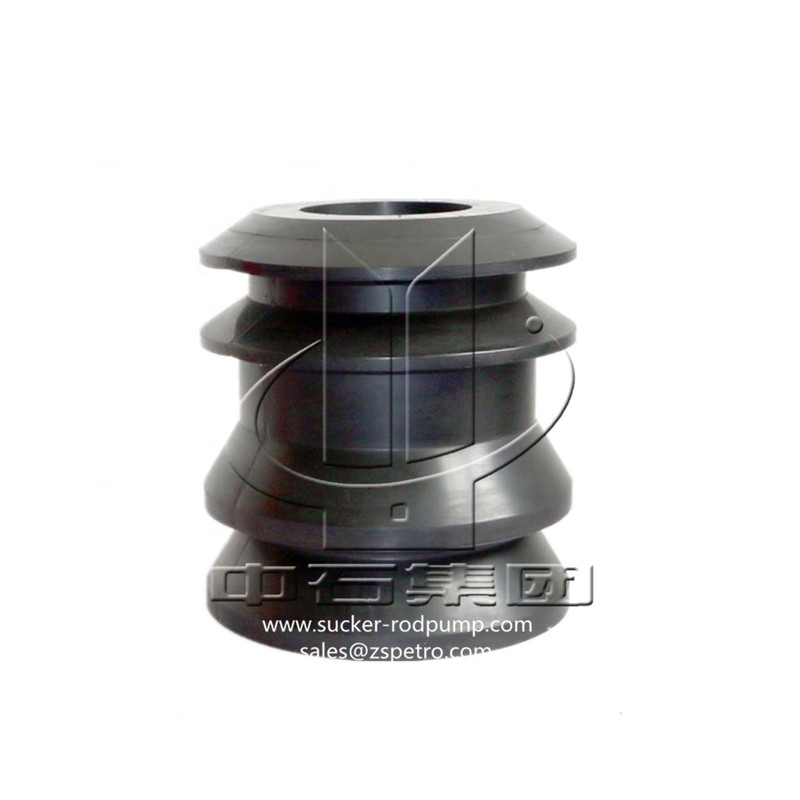

PDC Drillable Top And Bottom Cementing Plug Drilling Casing
These series of cementing plug have reinforced locking teeth built into the plugs, which lock together between the plugs and the float equipment to eliminate rotation of the plug during drill out.
PDC Drillable Top And Bottom Cementing Plug Drilling Casing Features
|
Casing size (in) |
casing weight range | Wiper Fin O.D | ||
| mm | in | mm | in | |
| 4 1/2" | 14.14-17.26 | 9.50-11.60 | 110 | 4.331 |
| 5" | 17.11-35.86 | 11.50-24.10 | 122 | 4.803 |
| 5 1/2" | 20.83-39.88 | 14.00-26.80 | 135 | 5.315 |
| 7" | 25.30-56.55 | 17.00-38.00 | 170 | 6.693 |
| 7 5/8 | 35.72-63.69 | 24.00-42.00 | 185 | 7.283 |
| 9 5/8 | ||||
| 9 5/8" | 53.57-79.62 | 36.00-53.50 | 235 | 9.252 |
| 10 3/4" | 60.27-97.77 | 40.50-65.70 | 260 | 10.236 |
| 13 3/8" | 71.43-107.15 | 48.00-72.00 | 333 | 13.11 |
| 20" | 139.89-197.93 | 94.00-133.00 | 498 | 19.606 |
