Product Details
Place of Origin: China
Brand Name: Puyang Zhongshi Group
Certification: API,ISO,QHSE
Model Number: 4 1/2"~20"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: depends on quantity
Payment Terms: T/T, MoneyGram
Product: |
Oilfield Cementing Tools Rotating Top Bottom Cementing Wiper Plug |
Material: |
Rubber |
Feature: |
PDC Drillable |
Processing: |
Moulding |
Temperature: |
-30℃ To 150℃ |
Use: |
Oil Drilling Rigs, Well Drilling |
Product: |
Oilfield Cementing Tools Rotating Top Bottom Cementing Wiper Plug |
Material: |
Rubber |
Feature: |
PDC Drillable |
Processing: |
Moulding |
Temperature: |
-30℃ To 150℃ |
Use: |
Oil Drilling Rigs, Well Drilling |

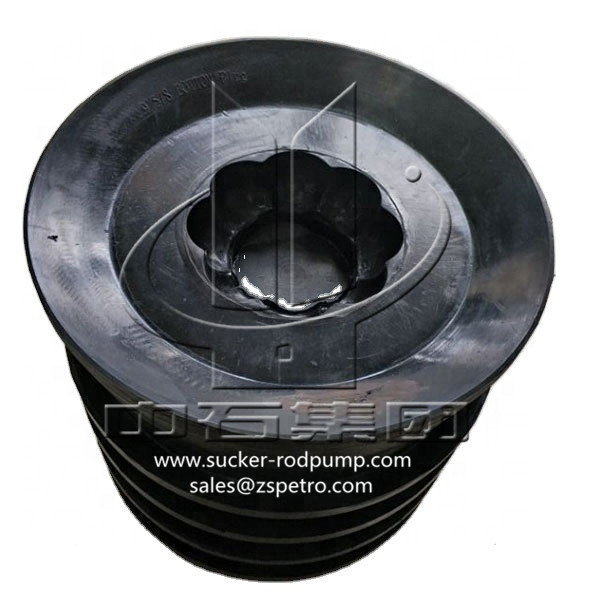

Oilfield Cementing Tools Rotating Top Bottom Cementing Wiper Plug
Two types of cementing plugs are typically used on a cementing operation.This plug is tested strictly every batch by pressure chambers at different required pressure and temperature
Oilfield Cementing Tools Rotating Top Bottom Cementing Wiper Plug Features
Reinforced locking teeth built into the plugs.
Available in 4 1/2" to 20 "sizes + any special sizes
The bottom plug in orange with rupture diaphragm at 300 psi differential.
Can be operated in either synthetic or mud fluids
|
Casing size (in) |
casing weight range | Wiper Fin O.D | ||
| mm | in | mm | in | |
| 4 1/2" | 14.14-17.26 | 9.50-11.60 | 110 | 4.331 |
| 5" | 17.11-35.86 | 11.50-24.10 | 122 | 4.803 |
| 5 1/2" | 20.83-39.88 | 14.00-26.80 | 135 | 5.315 |
| 7" | 25.30-56.55 | 17.00-38.00 | 170 | 6.693 |
| 7 5/8 | 35.72-63.69 | 24.00-42.00 | 185 | 7.283 |
| 9 5/8 | ||||
| 9 5/8" | 53.57-79.62 | 36.00-53.50 | 235 | 9.252 |
| 10 3/4" | 60.27-97.77 | 40.50-65.70 | 260 | 10.236 |
| 13 3/8" | 71.43-107.15 | 48.00-72.00 | 333 | 13.11 |
| 20" | 139.89-197.93 | 94.00-133.00 | 498 | 19.606 |
