API 11AX Suker Rod Pump With Zirconia Ceramics Valve Ball Seat

Product Details

Place of Origin: China

Brand Name: Zhongshi

Certification: API, ISO, QHSE

Model Number: RWBM

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Standard exported packing

Delivery Time: 10~15 workdays

Payment Terms: L/C, D/P, T/T, Western Union, D/A

Supply Ability: 1000 SETS/MONTH

Get Best Price
High Light:

API Suker Rod Pump

,

Suker Oil Well Rod Pump

,

Zirconia Oil Field Sucker Rod

Rod Pump Type:
Thin Wall Pump
Anchor Location:
Top Or Bottom
Anchor Type:
Mechanical Or Cup
Barrel Type:
Thin Walled Barrel
Barrel Material:
Carbon Steel In Usual
Application:
Oil Production
Rod Pump Type:
Thin Wall Pump
Anchor Location:
Top Or Bottom
Anchor Type:
Mechanical Or Cup
Barrel Type:
Thin Walled Barrel
Barrel Material:
Carbon Steel In Usual
Application:
Oil Production
API 11AX Suker Rod Pump With Zirconia Ceramics Valve Ball Seat

API 11AX Suker Rod Pump With Stainless Steel And Tungsten Carbide Valve Ball & Seat



Thin walled sucker rod pump description



Thin walled sucker rod pump is RW series, the models are listed as below:



Specification
1. Type of barrel: chrome plated or carbonitrided surface
2.
Type of plunger: metal spray or chrome plated surface
3. Valve ball and seat materials: stainless steel and tungsten carbide
4. Pump designation:
1) RHAM: Stationary Heavy Wall Barrel, Top Anchor, Mechanic Seating, Rod Pump
2) RHBM: Stationary Heavy Wall Barrel, Bottom Anchor, Mechanic Seating, Rod Pump
3)
RHBC: Stationary Heavy Wall Barrel, Bottom Anchor, Cup Seating, Rod Pump
4) RHAC: Stationary Heavy Wall Barrel, Top Anchor, Cup Seating, Rod Pump
5) RHT: Traveling Heavy Wall Barrel, Bottom Anchor, Rod Pump
6) RWA: Stationary Thin Wall Barrel, Top Anchor, Rod Pump
7)
RWT: Traveling Thin Wall Barrel, Bottom Anchor, Rod Pump
8) RWB: Stationary Thin Wall Barrel, Bottom Anchor, Rod Pump
9) RSA: Stationary Thin Wall Barrel, Top Anchor, Soft-packed Plunger, Rod Pump

Thin wall pump(RWBM) parameter data:



RWBM

specification

Pump diameter (in) Barrel length (ft) Stroke length (ft) Extension length (ft) Tubing size EUE(in)
20-125RWBM Ø31.75 2.1-10.4 1.2-9.0 / 2-3/8”
20-150RWBM Ø38.10 2-3/8”
25-200RWBM Ø50.80 2-7/8”
30-250RWBM Ø63.50 3-1/2”

API 11AX Suker Rod Pump With Zirconia Ceramics Valve Ball Seat 0

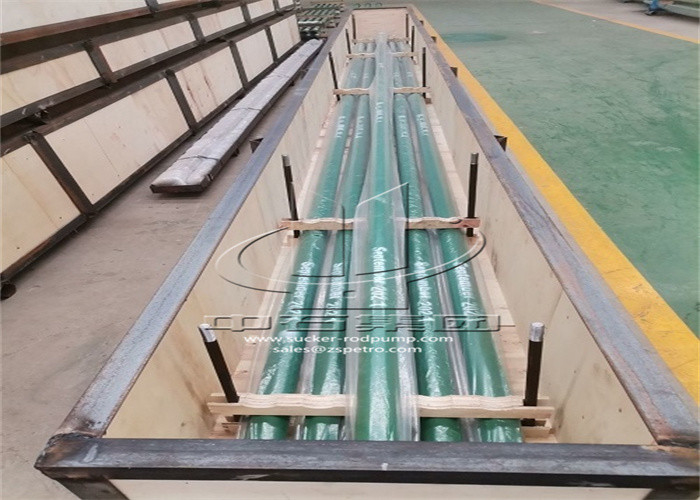

Packing Pictures



API 11AX Suker Rod Pump With Zirconia Ceramics Valve Ball Seat 1
