Home > products > Oilfield Sucker Rods > 3/4 Oilfield Sucker Rods Wheeled Rod Guides 6.5ppf N80 Tubing API

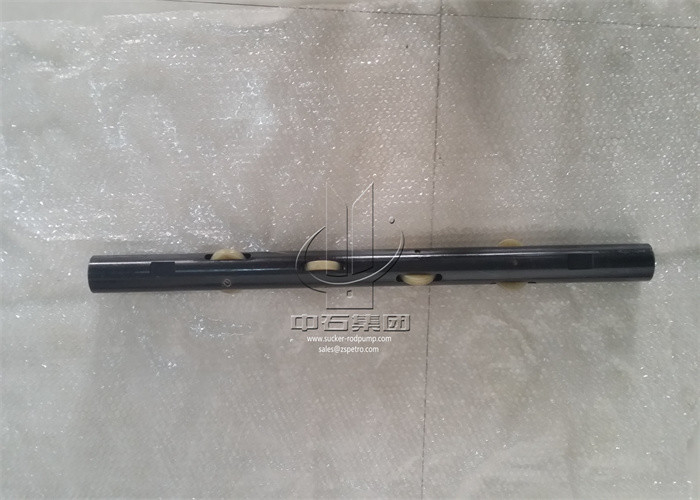

3/4 Oilfield Sucker Rods Wheeled Rod Guides 6.5ppf N80 Tubing API

Product Details

Place of Origin: China

Brand Name: Zhongshi

Certification: API ,ISO ,QHSE

Model Number: sucker rod

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: exported packing

Delivery Time: 2weeks

Payment Terms: T/T

Supply Ability: 1000pcs

Get Best Price
High Light:

Wheeled Rod Guides N80 Tubing

,

Wheeled Oil Well Sucker Rods

,

Oil Field Sucker Rod Guides

Type:
Sucker Rod,pony Rod
Size:
1 1/8",3/4",1",5/8"-1-1/8"
Grade:
D,KD,HY,K,HL
Material:
Alloy Steel,AISI 4130
Length:
25-30ft,. Or Customized
Product Name:
Alloy Steel Sucker Rod
Type:
Sucker Rod,pony Rod
Size:
1 1/8",3/4",1",5/8"-1-1/8"
Grade:
D,KD,HY,K,HL
Material:
Alloy Steel,AISI 4130
Length:
25-30ft,. Or Customized
Product Name:
Alloy Steel Sucker Rod
3/4 Oilfield Sucker Rods Wheeled Rod Guides 6.5ppf N80 Tubing API

API Wheeled Rod Guides for 3/4 Sucker Rods & 2-7/8 6.5ppf N80 Tubing​



Products Description:



1) On the first two or three rods above the bottom hole pump.

2) Intermittently throughout the rod string where wear is indicated on rods or tubing.

3) Where known hole deviation occurs.

4) On the first two or three rods below the stuffing box.



Tech Parameter



Specification DIMENSIONS(INCH)
Diameter Length Length of the groove
5/8''ROD/2-3/8''TUBING 1.50 27 1.80
3/4''ROD/2-3/8''TUBING 1.50 27 1.80
5/8''ROD/2-7/8''TUBING 1.50 27 2.25
3/4''ROD/2-7/8''TUBING 1.50 27 2.28
7/8''ROD/2-7/8''TUBING 1.625 27 2.28
1''ROD/2-7/8''TUBING 2.0 29 2.28
3/4''ROD/3-1/2''TUBING 1.50 31 2.75
7/8''ROD/3-12''TUBING 1.625 31 2.75
1''ROD/3-1/2''TUBING 2.0 31 2.75
