Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API ,ISO ,QHSE
Model Number: sucker rod
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: exported packing
Delivery Time: 2weeks
Payment Terms: T/T
Supply Ability: 1000pcs
Type: |
Wheeled Roller Centralizer |
Size: |
1 1/8",3/4",1",5/8"-1-1/8" |
Grade: |
D,KD,HY,K,HL |
Material: |
Alloy Steel,AISI 4130 |
Length: |
25-30ft,. Or Customized |
Product Name: |
Alloy Steel Sucker Rod |
Type: |
Wheeled Roller Centralizer |
Size: |
1 1/8",3/4",1",5/8"-1-1/8" |
Grade: |
D,KD,HY,K,HL |
Material: |
Alloy Steel,AISI 4130 |
Length: |
25-30ft,. Or Customized |
Product Name: |
Alloy Steel Sucker Rod |

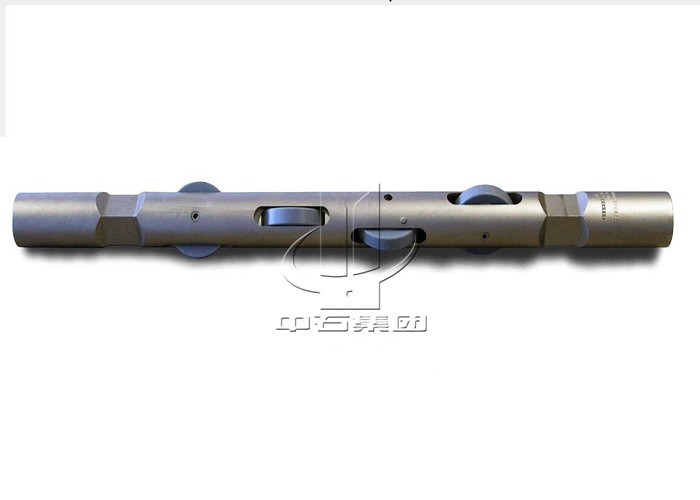

API Wheeled Rod Guides for Sucker Rods Wheeled Roller Centralizer With Galvanizing Process
1. Products Description:
1. Roller Centralizer should be installed:
1) On the first two or three rods above the bottom hole pump.
2) Intermittently throughout the rod string where wear is indicated on rods or tubing.
3) Where known hole deviation occurs.
4) On the first two or three rods below the stuffing box.
2. Tech Parameter
| Specification | DIMENSIONS(INCH) | ||
| Diameter | Length | Length of the groove | |
| 5/8''ROD/2-3/8''TUBING | 1.50 | 27 | 1.80 |
| 3/4''ROD/2-3/8''TUBING | 1.50 | 27 | 1.80 |
| 5/8''ROD/2-7/8''TUBING | 1.50 | 27 | 2.25 |
| 3/4''ROD/2-7/8''TUBING | 1.50 | 27 | 2.28 |
| 7/8''ROD/2-7/8''TUBING | 1.625 | 27 | 2.28 |
| 1''ROD/2-7/8''TUBING | 2.0 | 29 | 2.28 |
| 3/4''ROD/3-1/2''TUBING | 1.50 | 31 | 2.75 |
| 7/8''ROD/3-12''TUBING | 1.625 | 31 | 2.75 |
| 1''ROD/3-1/2''TUBING | 2.0 | 31 | 2.75 |
3. Temperature Caution
Standard models are for applications in wellbore temperature up to 175°F. (fitted with glass-fiber reinforced nylon 6 wheels), For service in higher temperature, Special metal wheels are used.
4. Parts of roller centralizer for sucker rod
| NO | PART NO | NAME | QTY | MATERIAL |
| 1 | RG-01 | Wheel | 4 | Glass-fiber Reinforced Nylon 6 |
| 2 | RG-02 | Roll pin | 4 | Stainless steel |
| 3 | RG-03 | Coupling body | 1 | 35CrMo |
Wheeled rod guides centralize the rod string and reduce friction during stroking, and also reduce wear on sucker rods and tubing.
