Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API, ISO, QHSE
Model Number: Sucker rod pump
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard exported packing
Delivery Time: 10~15 workdays
Payment Terms: L/C, D/P, T/T, Western Union, D/A
Supply Ability: 1000 SETS/MONTH
Pump Type: |
Sucker Rod Pump |
Plunger Material: |
High Carbon Steel |
Plunger Surface: |
Plain |
Plunger Coating: |
Spray Metal |
Plunger Length: |
2"-24" |
Structure: |
Inserted |
Pump Type: |
Sucker Rod Pump |
Plunger Material: |
High Carbon Steel |
Plunger Surface: |
Plain |
Plunger Coating: |
Spray Metal |
Plunger Length: |
2"-24" |
Structure: |
Inserted |
Spray Metal Plain Pin End Plunger Oil Sucker Rod Pumps
Plain pin end plunger sucker rod pump desciption:
sucker-rod pumps are a key component of a sucker-rod lift type of artificial lift system.
Sucker rod pump is equipped with a seating nipple, seating nipple connection on the tubing string, down to the bottom of the well with the tubing string.
There is a wide range of plunger (or pump-bore) sizes standardized by the industry. The API pump-bore sizes that are currently available range from 1 1/16 to 3 3/4 in. in diameter. This 1 1/16-in. size has been added back in the latest edition of the standard.
The plungers always are plain surface if no special request. There are the grooves on the plungers surface, these grooves are called sand grooves.
Plunger material:
1045 steel spraying (B1), 1045 steel spraying (B2), 1045 steel chrome plating (A1), 1045 steel double chrome plating (A2).
Technical Parameters table:
| Pump model | Pump size(in) | Plunger length (mm) | Range of Stroke (mm) | Pump Constant (m3/d) | Tubing size (in) | Sucker rod size(mm) | Length of extension Coupling |
| 25-125 | 1.25 | 600-1200 | 600-1200 | 1.14 | 2-1/2 2-7/8 | 16 | 300-900 |
| 25-150 | 1.5 | 1.642 | 2-1/2 2-7/8 | 16 | |||
| 25-175 | 1.75 | 2.235 | 2-1/2 2-7/8 | 16 | |||
| 20-175 | |||||||
| 25-225 | 2.25 | 3.694 | 2-7/8 | 19 | |||
| 25-275 | 2.75 | 5.518 | 2-7/8 | 22 | |||
| 30-275 | 2.75 | 5.518 | 3-1/2 | 22 | |||
| 30-325 | 3.25 | 7.707 | 3-1/2 | 22 | |||
| 30-375 | 3.75 | 10.261 | 3-1/2 | 25 | |||
| 40-375 | 3.75 | 10.261 | 4 | 25 |

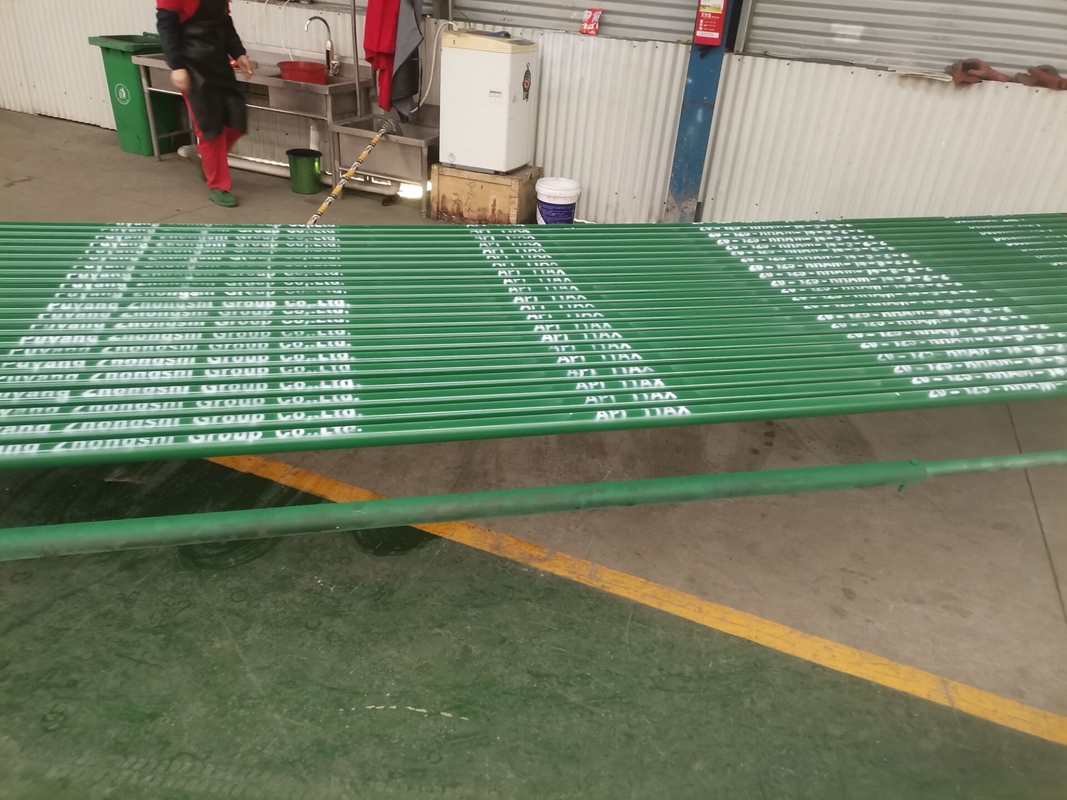

Packing photo:
