RWAC Sucker Rod Pump Downhole Thin Barrel Wall

Product Details

Place of Origin: China

Brand Name: Zhongshi

Certification: API, ISO, QHSE

Model Number: Sucker rod pump

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Standard exported packing

Delivery Time: 10~15 workdays

Payment Terms: L/C, D/P, T/T, Western Union, D/A

Supply Ability: 1000 SETS/MONTH

Get Best Price
High Light:

Oil Field Sucker Rod RWAC

,

Sucker Downhole Rod Pump

,

Thin Barrel Wall Suker Rod Pump

Pump Type:
Downhole Pump
Pump Barrel:
Thin Wall
Barrel Material:
High Carbon Steel
Plunger Type1:
Plain Surface
Plunger Type2:
Grooved
Warranty:
One Year
Pump Type:
Downhole Pump
Pump Barrel:
Thin Wall
Barrel Material:
High Carbon Steel
Plunger Type1:
Plain Surface
Plunger Type2:
Grooved
Warranty:
One Year
RWAC Sucker Rod Pump Downhole Thin Barrel Wall

Downhole Thin Barrel Wall RWAC Sucker Rod Pump



Thin barrel wall RWAC sucker rod pump description



The rod pump is connected to sucker rod after being assemblied on the surface then it is pulled down to the well bottom through the tubing. Thus it is convenient for the inspection and workover because they can be pulled up and down through the tubing and suitable for deeper well. The life span of tubing can be prolonged for decreasing the times of the thread of the tubing being turned on and off and the time of the workover. The rod pump can be classified into two types of mechanical seating and cup seating. Also it is divided into three types as RHA (stationary heavy well barrel top anchor rod pump), RHB (stationary heavy well barrel bottom anchor rod pump) and RHT (travelling heavy well barrel bottom anchor rod pump).



Technical parameters table:



API Model Pump OD (in) Barrel length (ft) Plunger length (ft) Stroke length (ft) Extension length (ft) Tubing size EUE(in)
20-125RWAC Ø31.75 2.1-10.4 0.3-8.0 1.2-9.0 0.3-0.9 2-3/8”
20-150RWAC Ø38.10 2-7/8”
25-200RWAC Ø44.45 2-7/8”
30-250RWAC Ø57.15 3-1/2”



Features



1. Easy operation.
2. Suitable for normal and corrosive oil wells, stable performance, use is safety.

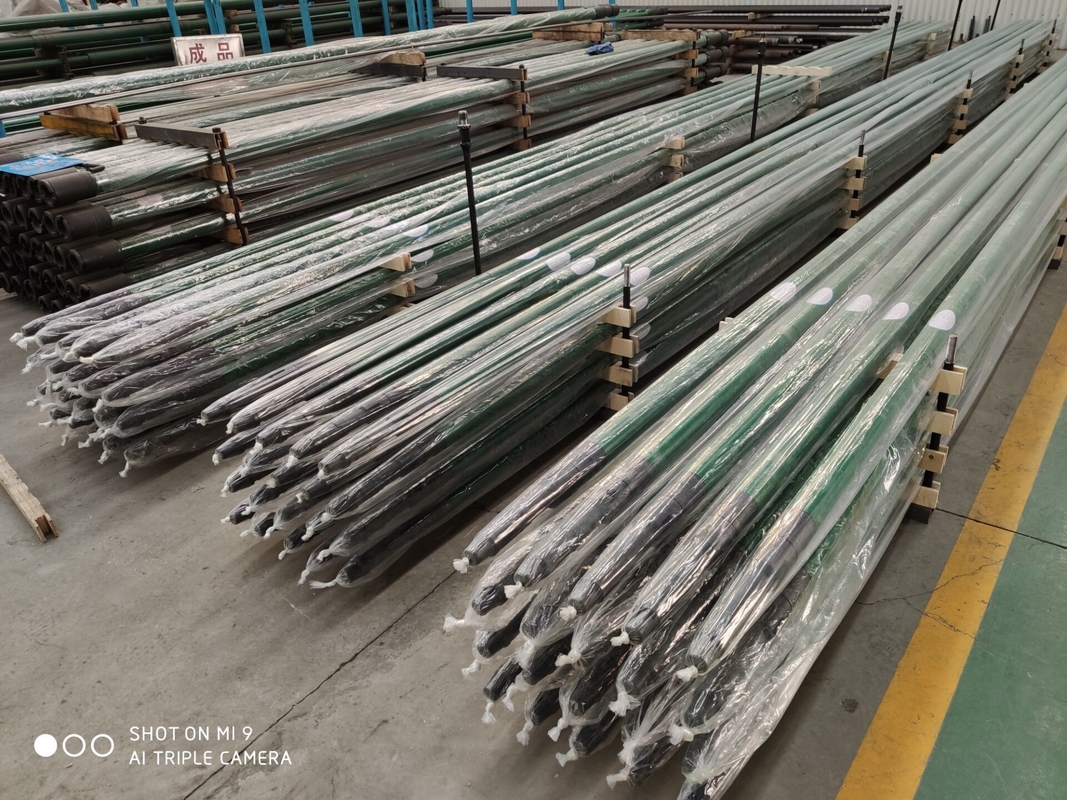

RWAC Sucker Rod Pump Downhole Thin Barrel Wall 0
