Product Details
Place of Origin: China
Brand Name: Puyang Zhongshi Group
Certification: API,ISO,QHSE
Model Number: 4 1/2"~36"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: depends on quantity
Payment Terms: T/T, MoneyGram
Product Name: |
Oilfield Roller Rigid Casing Centralizer |
Material: |
65Mn |
Type: |
Roller |
Installation: |
Slip-on |
Color: |
Red Color |
Field: |
Well Drilling |
Product Name: |
Oilfield Roller Rigid Casing Centralizer |
Material: |
65Mn |
Type: |
Roller |
Installation: |
Slip-on |
Color: |
Red Color |
Field: |
Well Drilling |

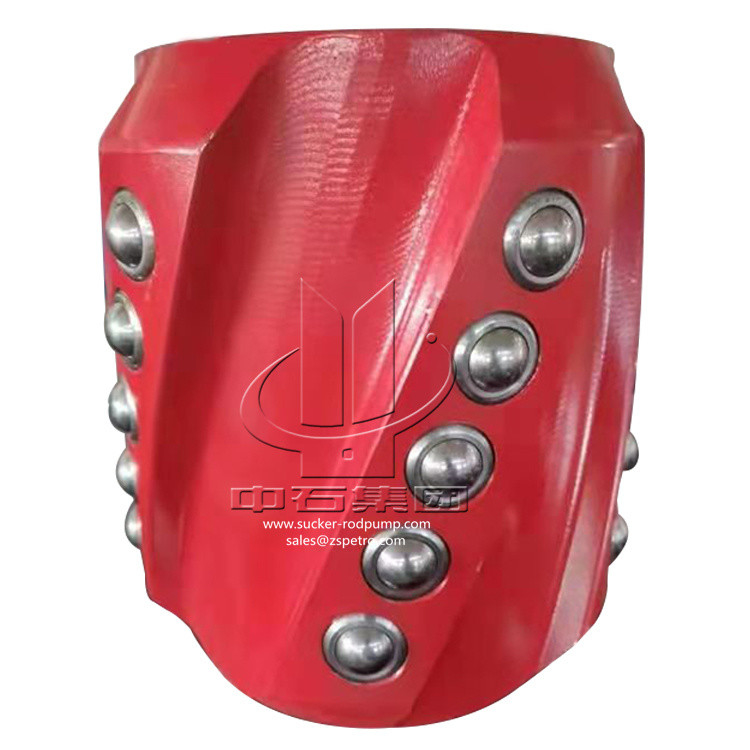

Oilfield Roller Rigid Casing Centralizer
Rigid casing centralizer is used in deviated wells and horizontal wells.
There are several blades on the rigid roller centralizer that can keep casing from contacting the wellbore wall
Oilfield Roller Rigid Casing Centralizer Features
| Casing centralizer | Min Hole | I.D. | O.D. | OAL |
| (mm/inch) | (mm/inch) | (mm/inch) | (mm/inch) | (mm/inch) |
| 139.7(5-1/2) | 215.9(8-1/2) | 143(5-5/8) | 211(8-5/16) | 260(10-1/4) |
| 177.8(7) | 215.9(8-1/2) | 181(7-1/8) | 213.4(8-13/32) | 260(10-1/4) |
| 244.5(9-5/8) | 311.15(12-1/4) | 247.5(9-11/16) | 305.4(12-1/64) | 260(10-1/4) |
| 339.7(13-3/8) | 406.4(16) | 344(13-35/64) | 402(15-53/64) | 260(10-1/4) |
