Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API, ISO, QHSE
Model Number: Sucker rod pump
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard exported packing
Delivery Time: 10~15 workdays
Payment Terms: L/C, D/P, T/T, Western Union, D/A
Supply Ability: 1000 SETS/MONTH
Barrel Structure: |
Stationary |
Barrel Type: |
Heavy Wall Or Thin Wall |
Model: |
20-125 To 30-250 |
Barrel Material: |
High Carbon Steel |
Barrel Coating: |
Chrome Plating |
Plunger Length: |
0.3-8ft |
Barrel Structure: |
Stationary |
Barrel Type: |
Heavy Wall Or Thin Wall |
Model: |
20-125 To 30-250 |
Barrel Material: |
High Carbon Steel |
Barrel Coating: |
Chrome Plating |
Plunger Length: |
0.3-8ft |
Petroleum Equipment API 11AX Production Downhole Pumps
API 11AX production downhole pump description
Sucker Rod pump is also known as insert rod pump, it is one type of the conventional sucker rod pumps.
The rod pump is connected to the sucker rod directly, it can be pulled out with sucker rod and does not influence the tubing, so the well inspection and workover is more convenient. It can save half times and reduce cost of the pumping test, thus the rod pump is suitable for the deeper well.
Puyang Zhongshi began to manufacture rod pump in the 1960s and we are the main insert and rod pump supplier in China. Our rod pump is strictly conforming to API SPEC 11AX (or GB18607) standard.
Depending on the wall thickness of the barrel, the rod pump can be classified as either a thin wall rod pump or a thick wall rod pump.
The Rod Pump, Stationary Thin Wall Barrel is generally suitable for shallow well. Due to the small OD of the barrel, a larger-sized rod pump can be run in an oil well with a small-sized tubing to increase production.
Downhole pump parts table:
| API Parts code | Parts description | Tubing Size & Pump Size | |||
| 2 3/8x1 1/4 | 2 3/8x1 1/2 | 2 7/8x2 | 3 1/2x2 1/2 | ||
| Complete Pump Designation | |||||
| 20-125 | 20-150 | 25-200 | 30-250 | ||
| B21 | Bushing, Valve Rod | B21-20 | B21-20 | B21-25 | B21-30 |
| R11 | Rod, Valve | R11-20 | R11-20 | R11-25 | R11-30 |
| C12 | Cage, Top Plunger | C12-125 | C12-150-20 | C12-200 | C12-250 |
| P21 | Plunger, One Piece | P21-125 | P21-150 | P21-200 | P21-250 |
| C13 | Cage, Closed, Pin Plunger | C13-125 | C13-150 | C13-200 | C13-250 |
| V11 | Traveling Valve | V11-125 | V11-150 | V11-200 | V11-250 |
| P12 | Plug Seat | P12-125 | P12-150 | P12-200 | P12-250 |
| G11 | Guide, Valve Rod | G11-20 | G11-20 | G11-25 | G11-30 |
| S21 | Seating Assembly, Mechanical Top Lock | S21-20 | S21-25 | S21-25 | S21-30 |
| B11 | Barrel, Thin Wall | B11-125 | B11-150 | B11-200 | B11-250 |
| C14 | Cage, Closed Barrel |
C14-20- 125 |
C14-20 | C14-25 | C14-30 |
| V11 | Standing Valve | V11-175 | V11-175 | V11-225 | V11-250 |
| B22 | Bushing, Seat, Barrel Cage | B22-20 | B22-20 | B22-25 | B22-30 |
| N14 | Nipple, Seating, Mechanical Top Lock | N14-20 | N14-25 | N14-25 | N14-30 |

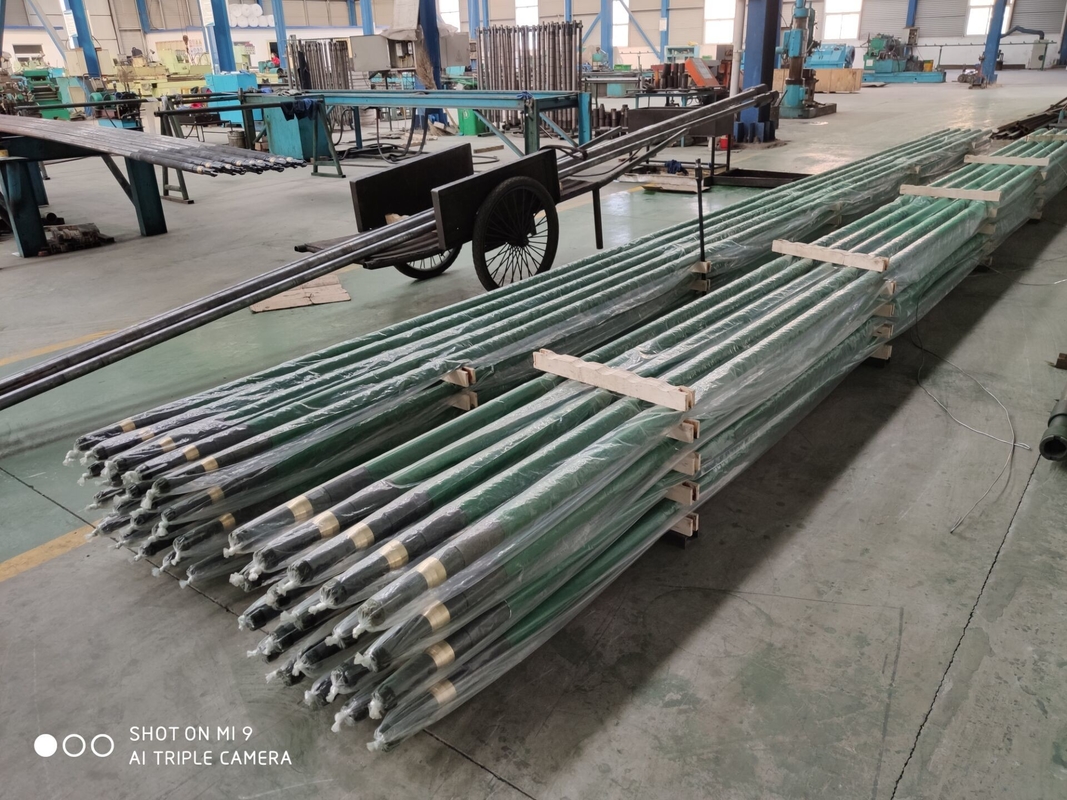

Delivery photo:
