Product Details
Place of Origin: China
Brand Name: Puyang Zhongshi Group
Certification: API,ISO,QHSE
Model Number: 4 1/2"~36"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: depends on quantity
Payment Terms: T/T, MoneyGram
Type: |
Hinged Stop Collar |
Installation: |
Latch On |
Specification: |
2-3/8''- To 30'' |
Material: |
65Mn,steel 20 |
Size: |
Different Sizes Are Available |
Feature: |
Used In Deviated Wells And Horizontal Wells |
Type: |
Hinged Stop Collar |
Installation: |
Latch On |
Specification: |
2-3/8''- To 30'' |
Material: |
65Mn,steel 20 |
Size: |
Different Sizes Are Available |
Feature: |
Used In Deviated Wells And Horizontal Wells |

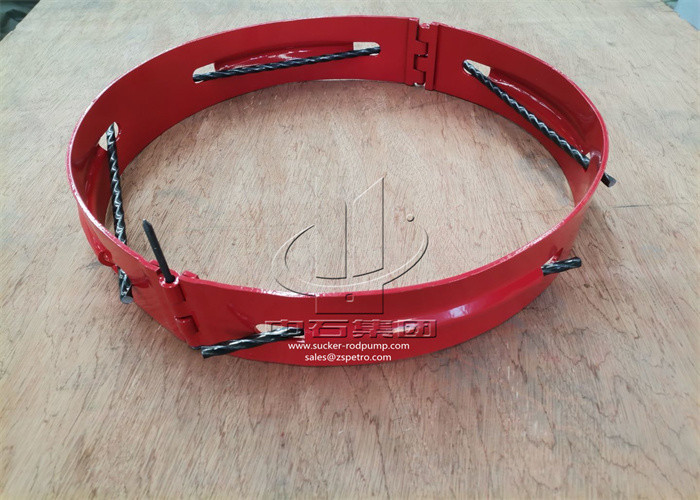

API Casing Hinged Stop Collar With Set Screw Cementing Tools
API oilfield hinged stop collar
Hinged stop collars that use hardened inserts to provide a positive lock onto the casing. Specially designed snap-in Shell, which provides to stop collar's strong holding force. The recommended torque on the bolt is approximately 25 to 35ft-lb. When properly installed, the hinged stop collar can provide a holding force up to 40,000lb.
API oilfield hinged stop collar Features
| Specification (Inch) | ID (mm) |
OD (mm) |
Holding Force (KN) |
| 13 3/ 8” | 338 | 350 | 40 |
| 10 3/ 4” | 272 | 284 | 40 |
| 9 5/ 8” | 245 | 257 | 40 |
| 8 1/ 8” | 206 | 218 | 40 |
| 7 5/ 8” | 193 | 285 | 30 |
| 7” | 177 | 189 | 30 |
| 5 1/ 2” | 139 | 151 | 30 |
| 5” | 126 | 138 | 24 |
| 4 1/ 2” | 114 | 126 | 24 |
