Product Details
Place of Origin: China
Brand Name: Puyang Zhongshi Group
Certification: API,ISO,QHSE
Model Number: 4 1/2"~36"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: depends on quantity
Payment Terms: T/T, MoneyGram
Product: |
Oilfield Reamer Shoe With Drillable Aluminum Nose |
Design: |
Aluminum Eccentric Nose |
Connection: |
API Thread Or As Request |
Material: |
P-110, K55, J55, N80 |
Belt: |
With Wear-band |
Tungsten Carbides: |
Chunky Grain Type And Button Insert Type |
Product: |
Oilfield Reamer Shoe With Drillable Aluminum Nose |
Design: |
Aluminum Eccentric Nose |
Connection: |
API Thread Or As Request |
Material: |
P-110, K55, J55, N80 |
Belt: |
With Wear-band |
Tungsten Carbides: |
Chunky Grain Type And Button Insert Type |

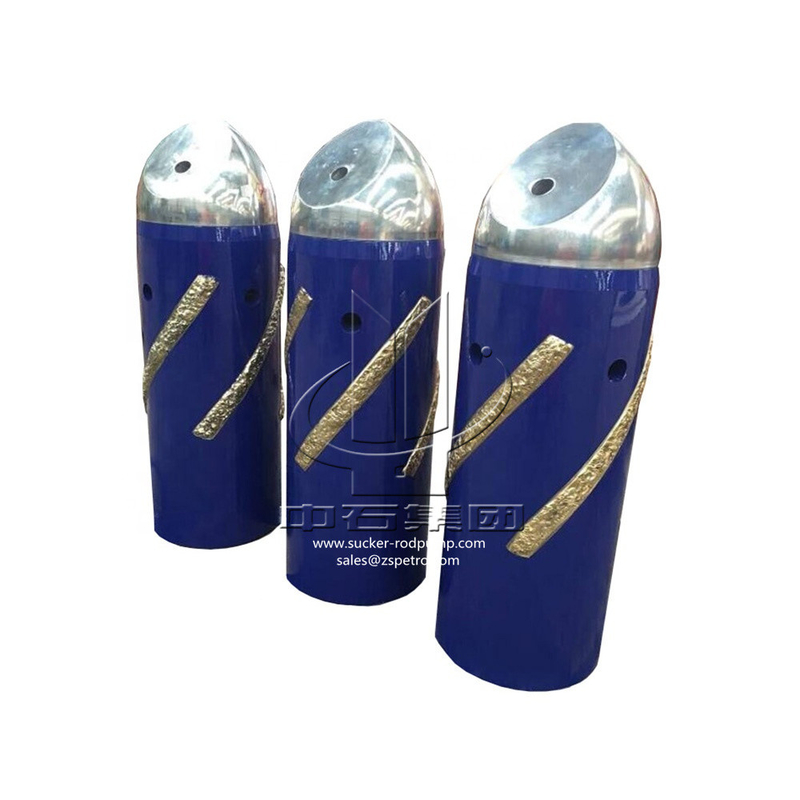

Oilfield Reamer shoe with Drillable Aluminum Nose
The eccentric guide nose climbs ledges and negotiates obstructions while the cutting structure reams out tight spots or obstruction in the wellbore. Compatible with all casing and liner hanger assemblies, our Reamer Shoe provides highly effective protection- against unexpected or anticipated casing and liner running problems.
| Size (in) | Bore O.D (in) | Bore I.D (in) | Min.Bore Parameter (in) | Thread Type | Ib (in 2) |
| 5 1/ 2” | 6” | 4 3/ 4” | 2” | 5 1/ 2” LCSG | 4351 |
| 7” | 7 5/ 8” | 6 1/ 4” | 2 3/ 8” | 7” LCSG | 3626 |
| 9 5/ 8” | 10 5/ 8” | 8 5/ 8” | 2 3/ 8” | 9 5/ 8” LCSG | 3626 |
| 13 3/ 8” | 14 3/ 8” | 12 3/ 8” | 2 3/ 8” | 13 3/ 8” LCSG | 3626 |
