Product Details
Place of Origin: China
Brand Name: Puyang Zhongshi Group
Certification: API,ISO,QHSE
Model Number: 4 1/2"~36"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: depends on quantity
Payment Terms: T/T, MoneyGram
Product: |
Oilfield Downhole Cementing Reamer Shoe With Aluminum Nose |
Fill-in: |
Aluminium Alloy Or Cement |
Valve: |
Single Valve Or Double Valve |
Material: |
P-110, K55, J55, N80 |
Belt: |
With Wear-band |
Tungsten Carbides: |
Chunky Grain Type And Button Insert Type |
Product: |
Oilfield Downhole Cementing Reamer Shoe With Aluminum Nose |
Fill-in: |
Aluminium Alloy Or Cement |
Valve: |
Single Valve Or Double Valve |
Material: |
P-110, K55, J55, N80 |
Belt: |
With Wear-band |
Tungsten Carbides: |
Chunky Grain Type And Button Insert Type |

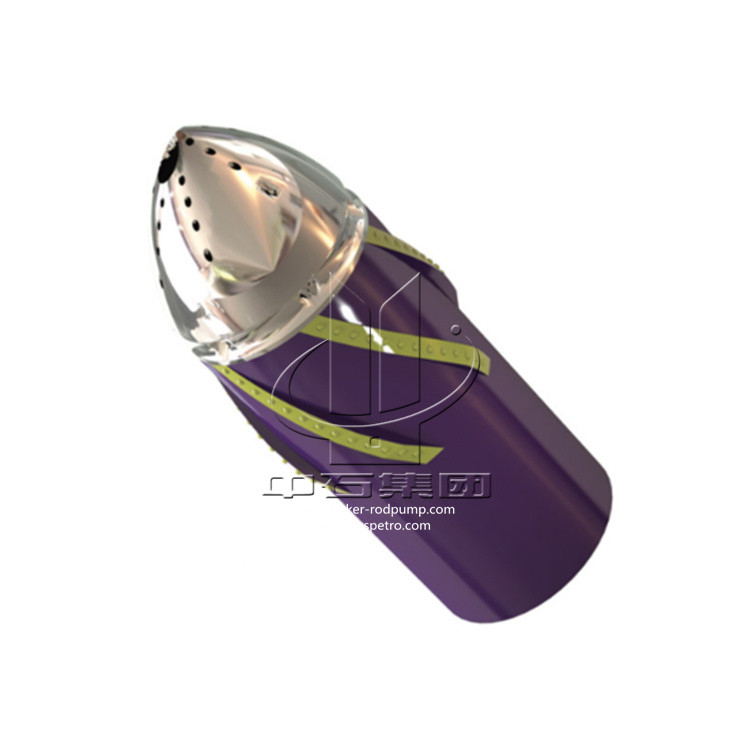

Oilfield Downhole Cementing Reamer Shoe with Aluminum Nose
The reamer shoe is a stabilized casing shoe with hardband onto the outer body and the nose is eccentric to give a mule shoe profile so that it can be rotated off ledges and is made of aluminum so that it can be drilled out with a PDC bit. The reamer shoe has three 2-in., directed-flow ports in the nose.The reamer shoes are designed to overcome various difficulties encountered in running casing.
| Size (in) | Bore O.D (in) | Bore I.D (in) | Min.Bore Parameter (in) | Thread Type | Ib (in 2) |
| 5 1/ 2” | 6” | 4 3/ 4” | 2” | 5 1/ 2” LCSG | 4351 |
| 7” | 7 5/ 8” | 6 1/ 4” | 2 3/ 8” | 7” LCSG | 3626 |
| 9 5/ 8” | 10 5/ 8” | 8 5/ 8” | 2 3/ 8” | 9 5/ 8” LCSG | 3626 |
| 13 3/ 8” | 14 3/ 8” | 12 3/ 8” | 2 3/ 8” | 13 3/ 8” LCSG | 3626 |
