Product Details
Place of Origin: China
Brand Name: Puyang Zhongshi Group
Certification: API,ISO,QHSE
Model Number: 4 1/2"~36"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: depends on quantity
Payment Terms: T/T, MoneyGram
Product: |
Oilfield Single Valve Cementing Float Shoe |
Steel Grade: |
P-110, K55, J55, N80,L80 |
Valve: |
Single |
Material: |
Steel |
Thread: |
API Thread Or As Required |
Size: |
4 1/2"-20" |
Product: |
Oilfield Single Valve Cementing Float Shoe |
Steel Grade: |
P-110, K55, J55, N80,L80 |
Valve: |
Single |
Material: |
Steel |
Thread: |
API Thread Or As Required |
Size: |
4 1/2"-20" |

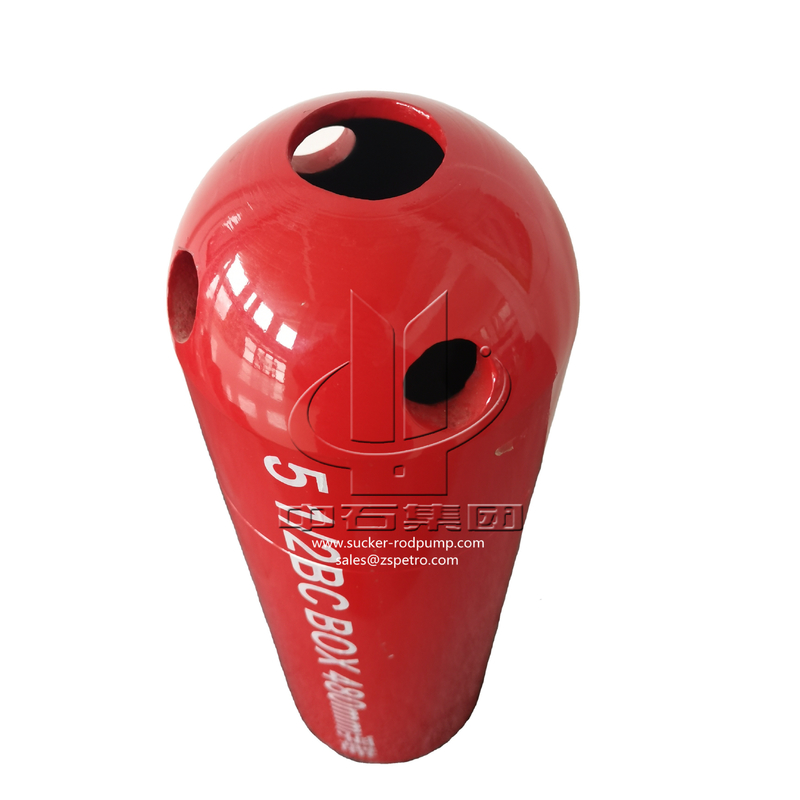

Oilfield Single Valve Cementing Float Shoe
It guides the casing to total depth and prevents contaminated mud from entering the casing. Also it provides a landing point for casing wiper plugs, reinforces the lower end of the casing string, and ensures greater accuracy of cement slurry displacement.
| Size (in) | Bore O.D (in) | Bore I.D (in) | Min.Bore Parameter (in) | Thread Type | Ib (in 2) |
| 5 1/ 2” | 6” | 4 3/ 4” | 2” | 5 1/ 2” LCSG | 4351 |
| 7” | 7 5/ 8” | 6 1/ 4” | 2 3/ 8” | 7” LCSG | 3626 |
| 9 5/ 8” | 10 5/ 8” | 8 5/ 8” | 2 3/ 8” | 9 5/ 8” LCSG | 3626 |
| 13 3/ 8” | 14 3/ 8” | 12 3/ 8” | 2 3/ 8” | 13 3/ 8” LCSG | 3626 |
